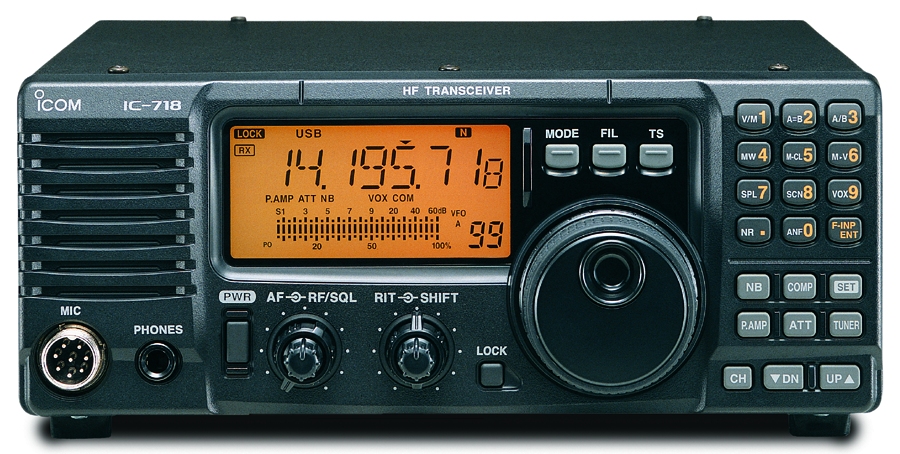

Icom IC-718

Type: Amateur HF Transceiver
Frequency Range: TX: 10-160 m + WARC
RX: 0.030-30 MHz
Modes: SSB/CW/AM
RF Power output: SSB/CW: 5-100 W
AM: 2-40 W
Sensitivity: N/A
Selectivity: N/A
Image rejection: N/A
Voltage: 13.8 VDC
Current Drain: RX: Max 2 A
TX: Max 20 A
Aerial Input: 50 ohms, SO-239
Dimensions (W*H*D): 240*95*239 mm
Weight: 3.8 Kg
Manufactured: 2000-200x
Other: 101 memories
Related Documents: User Manual (3.9 MB)
Brochure (281 Kb)
