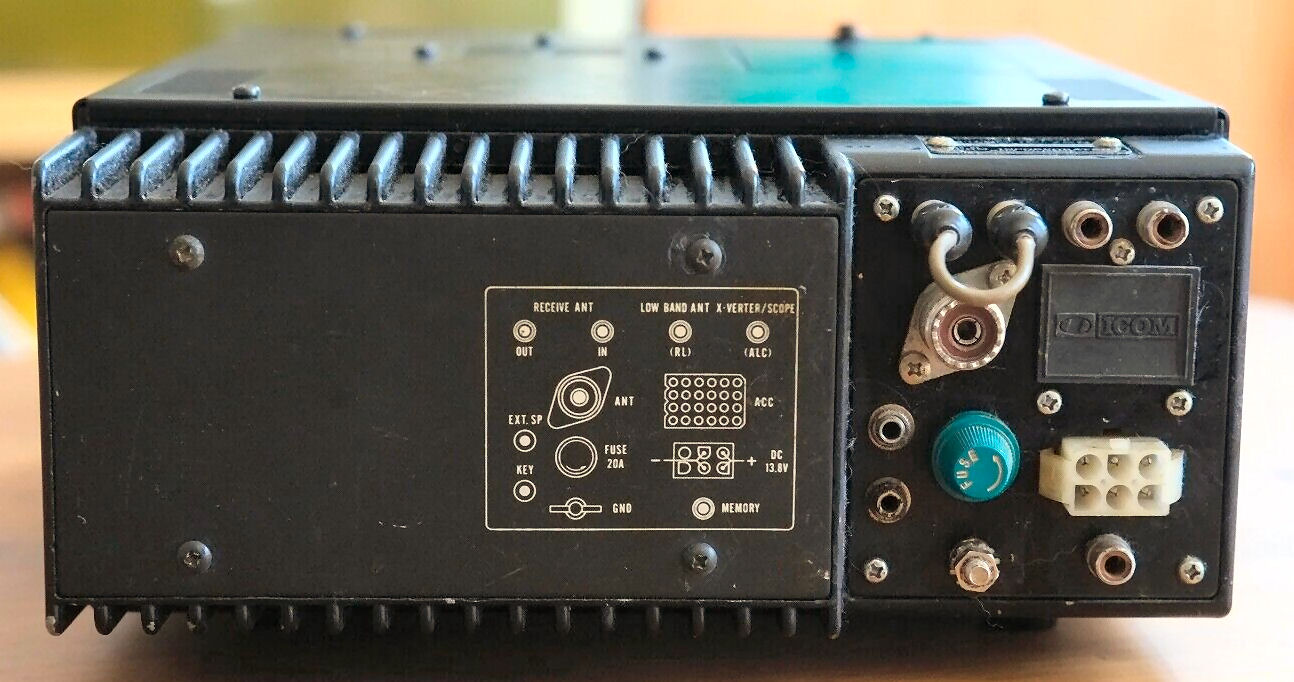

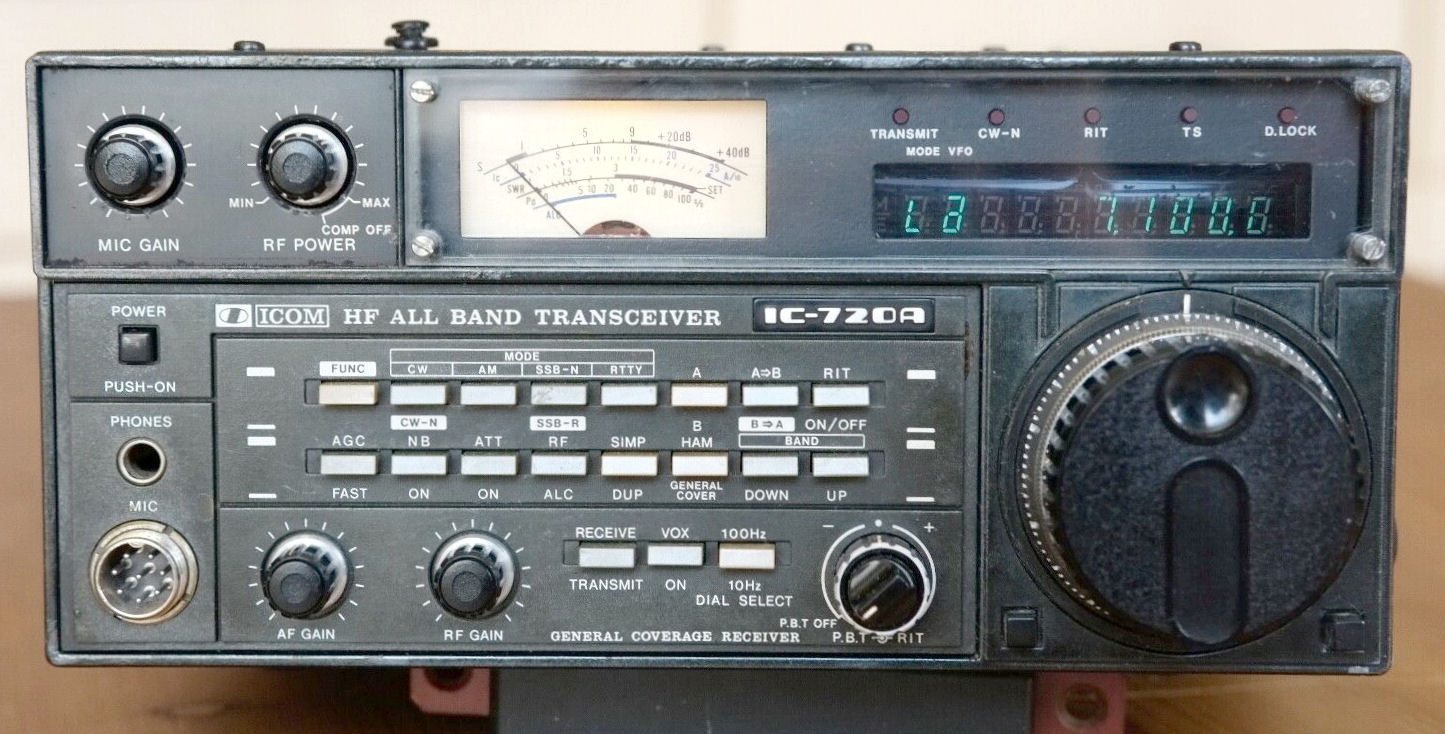

Icom IC-720A
| Type:
|
Amateur HF Transceiver |
| Frequency Range: |
TX: 10-160 m + WARC
RX: 0.1-30 MHz |
| Modes: |
SSB/CW/AM |
| RF Power output: |
100 W |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
13.8 VDC |
| Current Drain: |
RX: 900 mA
TX: Max 20 A |
| Aerial Input: |
50 ohms, SO-239 |
| Dimensions (W*H*D): |
241*111*311 mm |
| Weight: |
7.5 Kg |
| Manufactured: |
1980-19xx |
| Other: |
|
| Related Documents: |
User Manual (5.5 MB) |
 |
