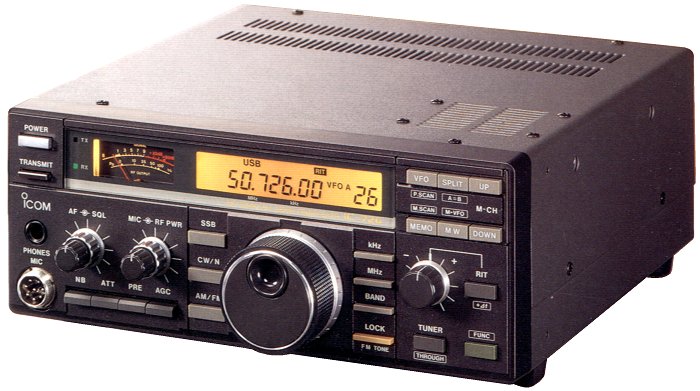

Icom IC-726
| Type:
|
Amateur HF/VHF Transceiver |
| Frequency Range: |
TX: 10-160 m + WARC/50-54 MHz
RX: 0.03-33 / 46.2-61.1 MHz |
| Modes: |
AM/FM/SSB/CW |
| RF Power output: |
HF: 10-100 W (AM 10-40 W)
6 m: 1-10 W (AM 1-4 W) |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
13.8 VDC |
| Current Drain: |
RX: ? A
TX: Max 20 A |
| Aerial Input: |
50 ohms, SO-239 |
| Dimensions (W*H*D): |
? mm |
| Weight: |
? Kg |
| Manufactured: |
1989-19xx |
| Other: |
|
| Related Documents: |
User Manual (3.1 MB) |
|
