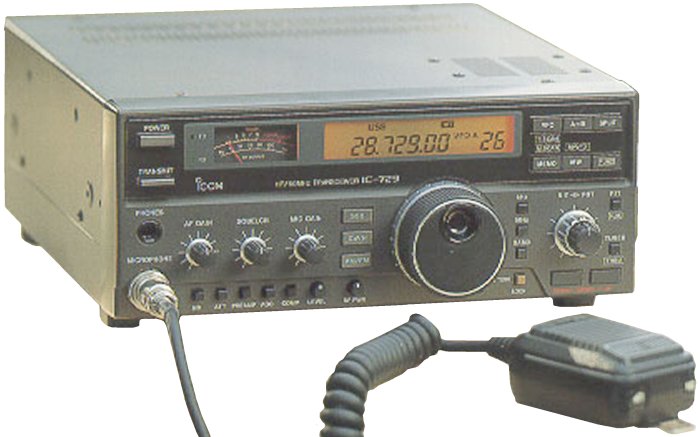

Icom IC-729
| Type:
|
Amateur HF/VHF Transceiver |
| Frequency Range: |
TX: 10-160 m + WARC / 50-54 MHz
RX: 0.5-30 / 46.2-61.1 MHz |
| Modes: |
AM/FM/SSB/CW |
| RF Power output: |
10-100 / 1-10 W (AM 10-40/1-4 W) |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
13.8 VDC |
| Current Drain: |
RX: Max ? A
TX: Max 20 A |
| Aerial Input: |
50 ohms, SO-239 |
| Dimensions (W*H*D): |
241*94*239 mm |
| Weight: |
4.6 Kg |
| Manufactured: |
1992-19xx |
| Other: |
|
| Related Documents: |
User Manual (5.9 MB) |
|
