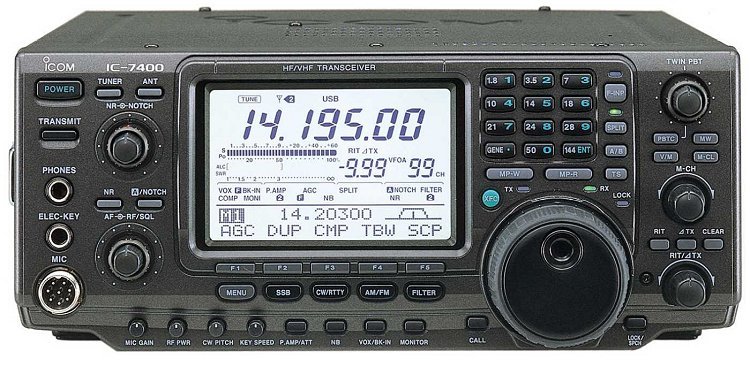

Icom IC-7400
| Type:
|
Amateur HF/VHF Transceiver |
| Frequency Range: |
10-160 m + WARC/6 m/2 m |
| Modes: |
AM/FM/SSB/CW |
| RF Power output: |
100/100/100 W |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
Mains |
| Current Drain: |
RX: ? A
TX: Max ? A |
| Aerial Input: |
50 ohms, SO-239 |
| Dimensions (W*H*D): |
287*123*316 mm |
| Weight: |
9 Kg |
| Manufactured: |
Japan, 2001-200x |
| Other: |
IF DSP. Built-in RTTY demodulator.
This is the version approved for the european market.
The US version is called IC-746 Pro. |
| Related Documents: |
User Manual (5.8 MB) |
|
