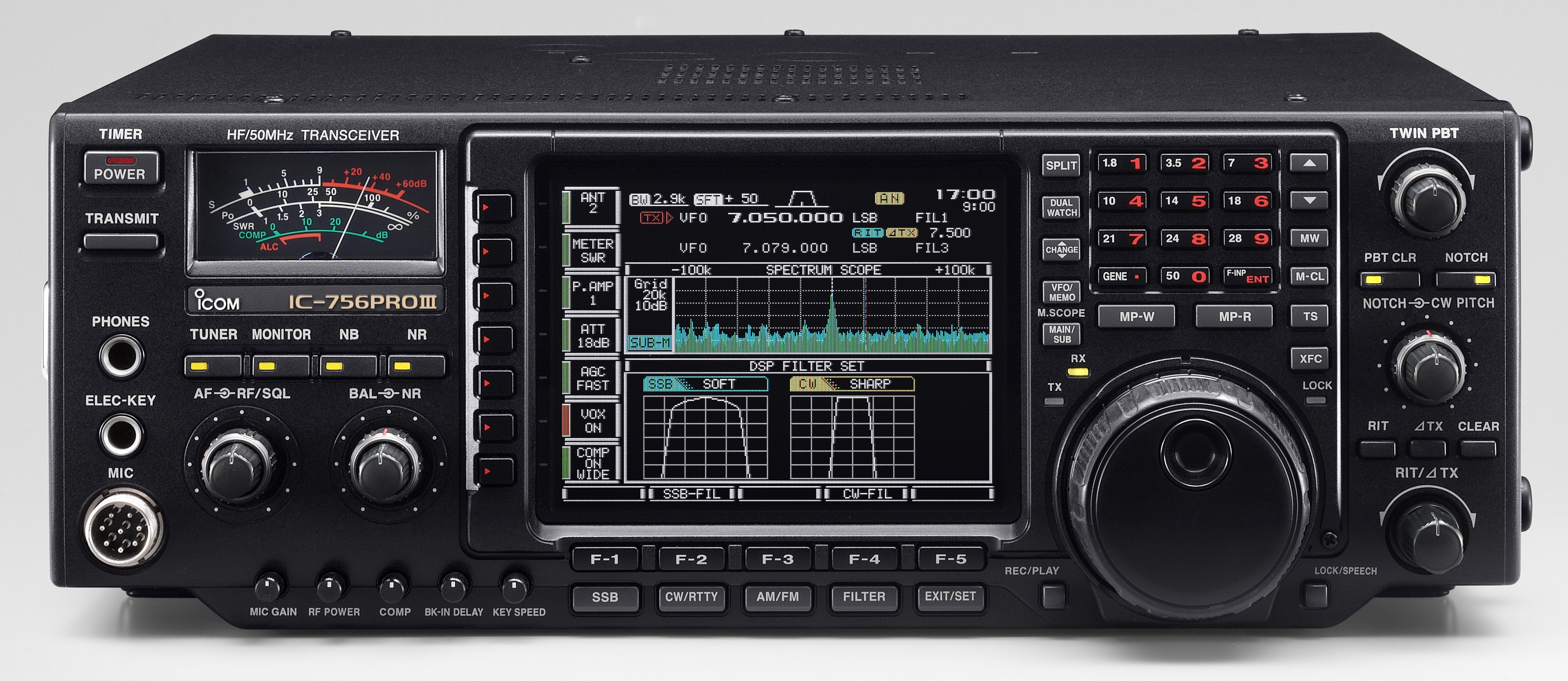

Icom IC-756 PRO III
| Type:
|
Amateur HF/VHF Transceiver |
| Frequency Range: |
TX: 10-160 m + WARC / 50-54 MHz
RX: 0.03-60 MHz |
| Modes: |
AM/FM/SSB/CW/RTTY |
| RF Power output: |
SSB/CW/FM/RTTY: 5-100/5-100 W (100% duty cycle)
AM: 5-40/5-40 W |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
70 dB |
| Voltage: |
13.8 VDC +/- 15% |
| Current Drain: |
RX: Max 3.5 A
TX: Max 23 A |
| Aerial Input: |
50 ohms, 2*SO-239 |
| Dimensions (W*H*D): |
340*111*285 mm |
| Weight: |
9.6 Kg |
| Manufactured: |
Japan, 2004-200x |
| Other: |
32 bit IF-DSP. Built-in RTTY demodulator and auto-ATU.
IP3 = +30 dBm, Twin RX |
| Related Documents: |
User Manual (3.35 MB)
Brochure (237 Kb) |
 |
