| Type: |
Amateur HF/VHF Transceiver |
| Frequency Range: |
RX: 0.03-60 MHz
TX: 10-160 m + WARC (also 137 KHz for EU version) / 6 m |
| Modes: |
AM/FM/SSB/CW/RTTY/PSK31 |
| RF Power output: |
AM: 1-25
FM/SSB/CW/RTTY/PSK:1-100 W |
| Memories: |
101 (99 Regular, 2 Scan Edges)
Non-volatile EEPROM storage |
| Voltage: |
13.8 VDC ±15% |
| Current Drain: |
RX: ? A
TX: Max ? A |
| Aerial Input: |
50 ohm (16.7-150 ohm with ATU) / Two SO-239 |
| Dimensions (W*H*D): |
340 x 118 x 277 mm
13.4 x 4.6 x 10.9 inches |
| Weight: |
8.5 Kg
18.7 lbs |
| Manufactured: |
Japan, 2017-20xx |
| Other: |

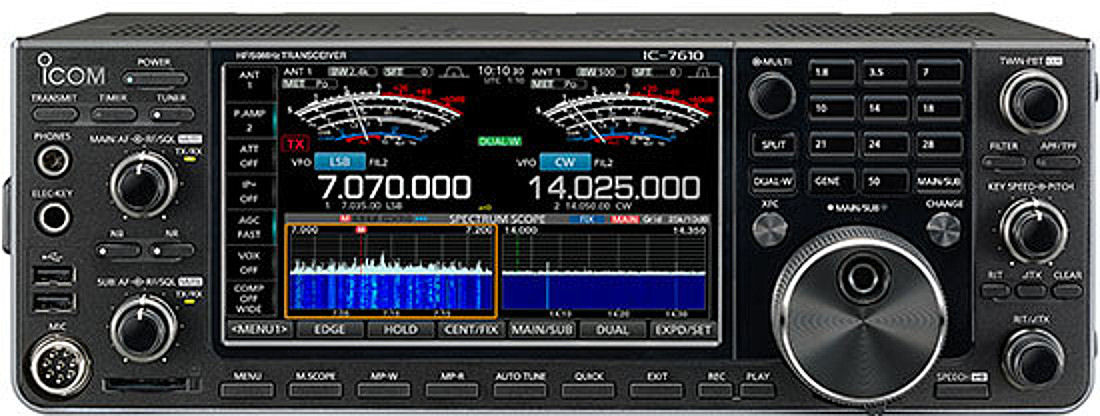

7 inch touch screen display (800*400 pixels). True dual receivers.
Diversity reception. Transverter port. LAN port. USB ports
Video monitor output. RTTY decoder. Electronic keyer. Auto ATU and more. |
| Related Documents: |
User Manual (16.5 MB)
Advanced Manual (14.5 MB) |
