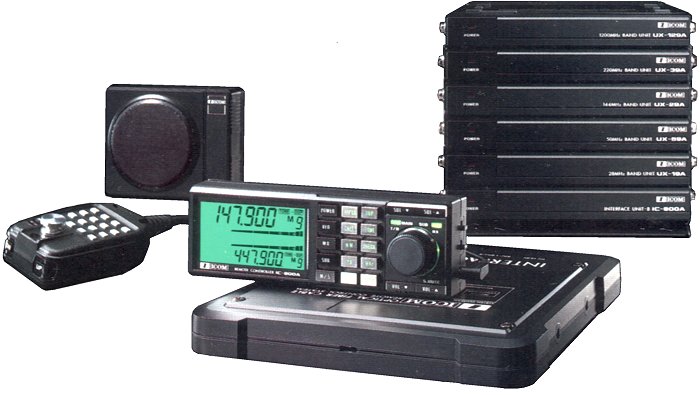

Icom IC-900A

Type: Amateur VHF/UHF Transceiver
Frequency Range: 144-148 / 430-450 MHz
Modes: FM
RF Power output: Hi: 25/25 W
Lo: 5/5 W
Sensitivity: N/A
Selectivity: N/A
Image rejection: N/A
Voltage: 13.8 VDC
Current Drain: RX: Max 1.7 A
TX: Max 6 A
Aerial Input: 50 ohms
Dimensions (W*H*D): Panel: 150*50*25 mm
Weight: ? Kg
Manufactured: 1987-19xx
Other: 10 m/10 W and 23 cm/10 W option. Twin RX.
Related Documents: User Manual (3.1 MB)
