| Type: |

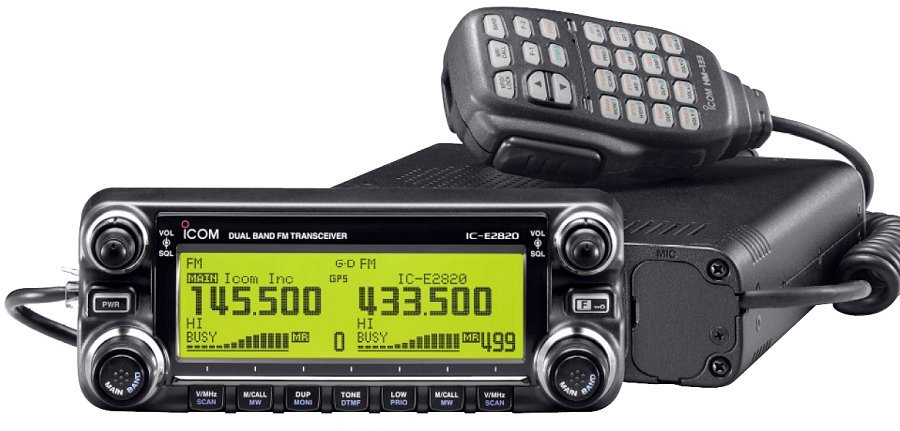

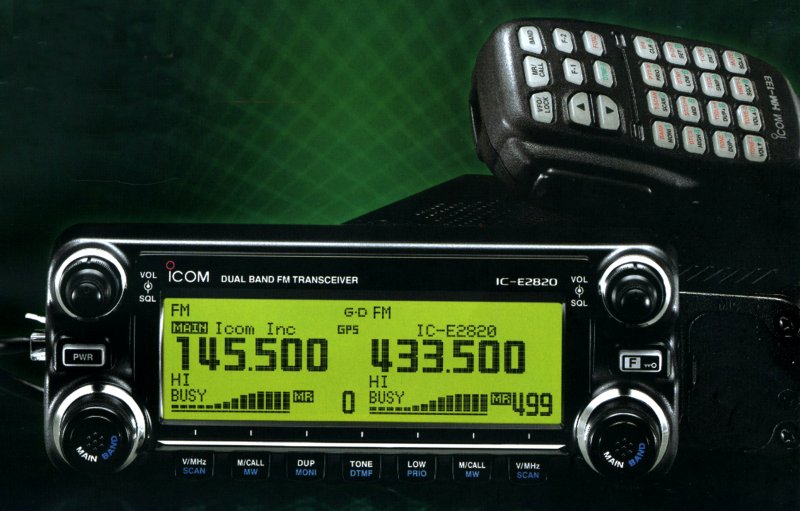

Dual-Band Mobile Transceiver & Wideband Receiver |
| Frequency Range: |
TX:144-146 / 430-440 MHz (Europe)
RX: 118–550 and 810–1000 MHz |
| Modes: |
TX: FM/FM-N (DV-option)
RX: AM/FM/FM-N (DV option |
| RF Power output: |
Hi: 50/50 W
Mid: 15/15 W
Lo: 5/5 W |
| Memory Channels: |
522 |
| Search Banks: |
N/A |
| Scan Speed: |
N/A |
| Search Speed: |
N/A |
| Increment Steps: |
5, 6.25, 10, 12.5, 15, 20, 25, 30, 50 KHz |
| Scan Delay: |
N/A |
| Sensitivity: |
<0.18 uV (12 dB SINAD) |
| Selectivity: |
FM: 10 KHz (-6 dB), 30 KHz (-60 dB)
FM-N: 6 KHz (-6 dB), 20 KHz (-60 dB) |
| Image rejection: |
>60 dB |
| Voltage: |
13.8 VDC +/- 15% |
| Current Drain: |
RX: 1.2-1.8 A
TX: Max 13 A |
| Aerial Input: |
50 ohms, 2 * SO-239 |
| Dimensions: |
Main unit: 150(W) x 40(H) x 188(D) mm
Controller: 150(W) x 58(H) x 32(D) mm |
| Weight: |
Main unit: 1.5 Kg
Controller: 210 gr |
| Manufactured: |
Japan, 2007-20xx |
| Other: |
DTMF. CTCSS. DV/GPS option (UT-123)
Diversity reception. Twin RX. |
| Related Documents: |
User Manual (2.2 MB) |
