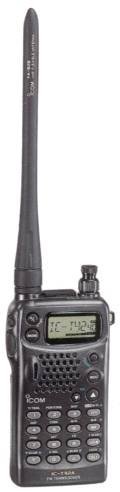

Icom IC-T42E

Type: Amateur UHF Transceiver
Frequency Range: TX: 430-440 MHz
RX: 400-470 MHz
Modes: FM
RF Power output: Hi: 5 W
Lo: 0.5 W
Sensitivity: (12 SINAD) Less than 0.16ÁV (typical)
Selectivity: More than 15 kHz/-6 dB
Less than 30 kHz/-60 dB
Image rejection: More Than 50 dB
Voltage: Internal : 4.8-9.6 VDC
External : 4.5-16.0 VDC
Current Drain: RX: 150 mA
TX: Max 1.4 A
Aerial Input: 50 ohms
Dimensions: 57(W) x 110(H) x 27(D) mm
Weight: 300 gr
Manufactured: 19xx-19xx
Other:
Related Documents: Instruction Manual (9.45 MB)
