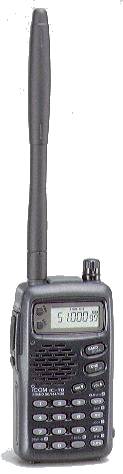

Icom IC-T8E
| Type:
|
Amateur VHF/UHF Transceiver |
| Frequency Range: |
TX: 50-54 / 144-146 / 430-440 MHz
RX: 118-174 / 400-470 MHz |
| Modes: |
TX: FM
RX: AM/FM |
| RF Power output: |
Hi: 5/5/5 W (depending on voltage)
Lo: 0.5/0.5/0.5 W |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
? VDC |
| Current Drain: |
RX: Max 200 mA
TX: Max 1.4 A |
| Aerial Input: |
50 ohms, SMA |
| Dimensions (W*H*D): |
58*107*29 mm |
| Weight: |
270 gr |
| Manufactured: |
199x-200x |
| Other: |
|
| Related Documents: |
User Manual (3.7 MB) |
|
