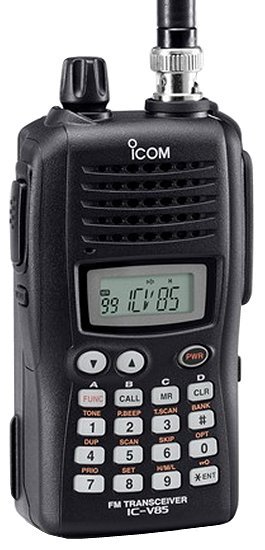

Icom IC-V85

Type: Amateur VHF Transceiver
Frequency Range: TX: 144-146 MHz (Europe)
TX: 144-148 MHz (USA)
RX: 136-174 MHz
(5 / 10 / 12.5 / 15 / 20 / 25 / 50 KHz steps)
Modes: FM
RF Power output: Hi: 7 W
Mid: 4 W
Lo: 0.5 W
Sensitivity: 0.2 uV (12 dB SINAD)
Selectivity: N/A
Image rejection: >60 dB
Voltage: 11 VDC (battery pack)
Current Drain: RX: 30-250 mA
TX: Max 2.6 A
Impedance: 50 ohms, BNC
Dimensions (W*H*D): 56*110*35 mm
Weight: 310 gr (with BP-227)
Manufactured: 2007-200x
Other: 100 + 7 memories. CTCSS & DTCS. Alpha tags
WX alert (US version only).
