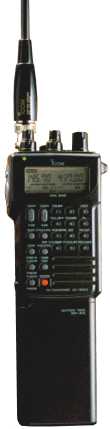

Icom IC-W2E

Type: Amateur VHF/UHF Transceiver
Frequency Range: TX: 144-146 / 430-440 MHz
RX: 136-174 / 400-470 MHz
Modes: FM
RF Power output: Hi: 5/5 W
Lo3: 3.5/3.5 W
Lo2: 1.5/1.5 W
Lo1: 0.5/0.5 W
Sensitivity: N/A
Selectivity: N/A
Image rejection: N/A
Voltage: 6-16 VDC
Current Drain: RX: 20-200 mA
TX: Max 1.8 A
Aerial Input: 50 ohms, BNC
Dimensions (W*H*D): 54*154*36 mm
Weight: 450 gr (with BP-83)
Manufactured: 1991-19xx
Other: Twin RX
Related Documents: User Manual (3.9 MB)
Schematics (520 KB)
