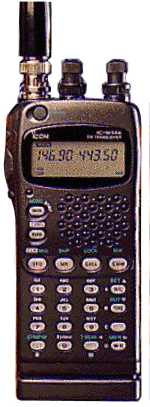

Icom IC-W32A
| Type:
|
Amateur VHF/UHF Transceiver |
| Frequency Range: |
TX: 144-148 / 440-450 MHz
RX: 118-174 / 450-470 MHz |
| Modes: |
TX: FM
RX: AM/FM |
| RF Power output: |
Hi: 5/5 W
Lo: 0.5/0.5 W |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
4.5-16 VDC |
| Current Drain: |
RX: 40-210 mA
TX: Max 1.6 A |
| Aerial Input: |
50 ohms, BNC |
| Dimensions (W*H*D): |
57*137*33 mm |
| Weight: |
450 gr |
| Manufactured: |
19xx-19xx |
| Other: |
Twin RX |
| Related Documents: |
User Manual (720 KB) |
|
