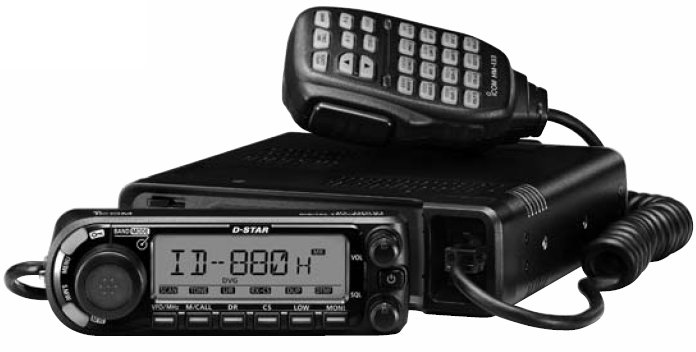

Icom ID-880H
| Type:
|
Amateur VHF/UHF Transceiver |
| Frequency Range: |
TX: 144-146 / 430-440 MHz
RX: 118-174 / 230-550 / 834-915 / 960.1-1000 MHz |
| Modes: |
RX: AM/FM/DV |
| RF Power output: |
Hi: 50/50 W
MID: 15/15 W
Lo: 5/5 W |
| Frequency Steps: |
N/A |
| Voltage: |
13.8 VDC |
| Current Drain: |
RX: ?? A
TX: Max ?? A |
| Aerial Input: |
50 ohms, N |
| Dimensions (W*H*D): |
141*40*186 mm (Transceiver)
111*40*39 mm (control head) |
| Weight: |
1.2 Kg |
| Manufactured: |
Japan, 2009-20xx |
| Other: |
D-Star concept |
