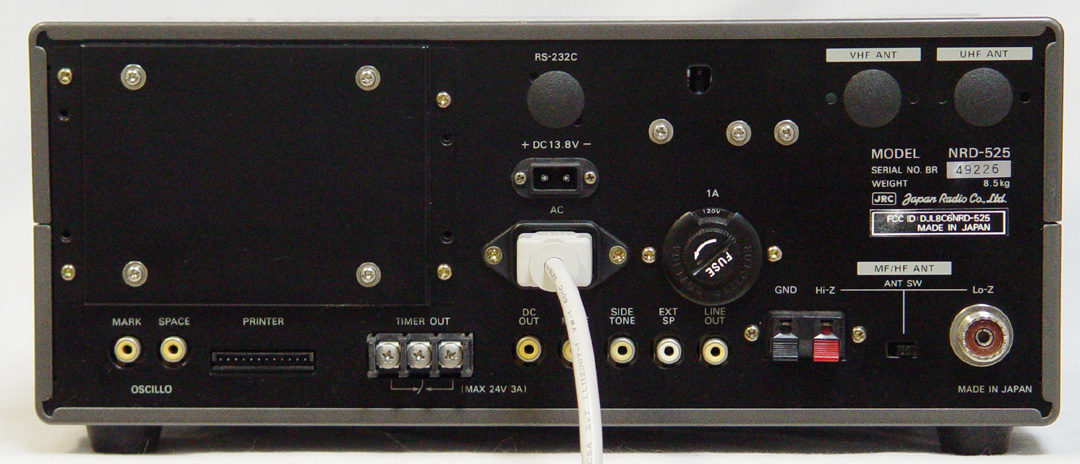

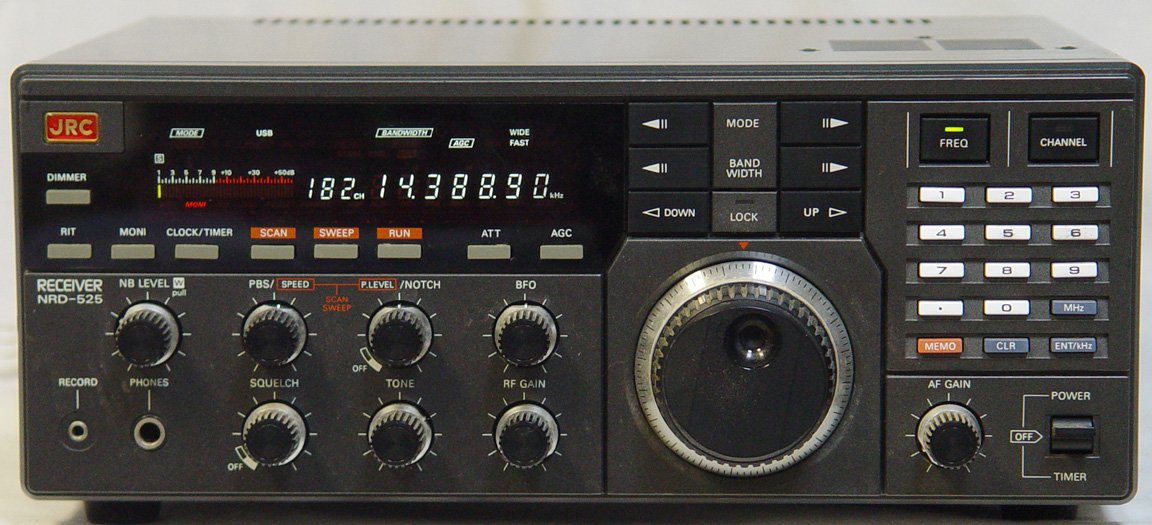

JRC NRD-525
| Type: |
Shortwave Receiver |
| Frequency Range: |
90 KHz-34 MHz |
| Modes: |
All-mode |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
13.8 VDC or Mains |
| Current Drain: |
Max ? A |
| Aerial Input: |
50 ohms |
| Dimensions (W*H*D): |
13.5 x 5.2 x 11.3" |
| Weight: |
19 Lbs |
| Manufactured: |
Japan, 1986-1992 |
| Other: |
114-174 / 423-456 MHz, RTTY demod, RS232 and CW-filter option |
| Related Documents: |
Owner's Manual (5.21 MB)
Service Manual (5.77 MB) |
 |
