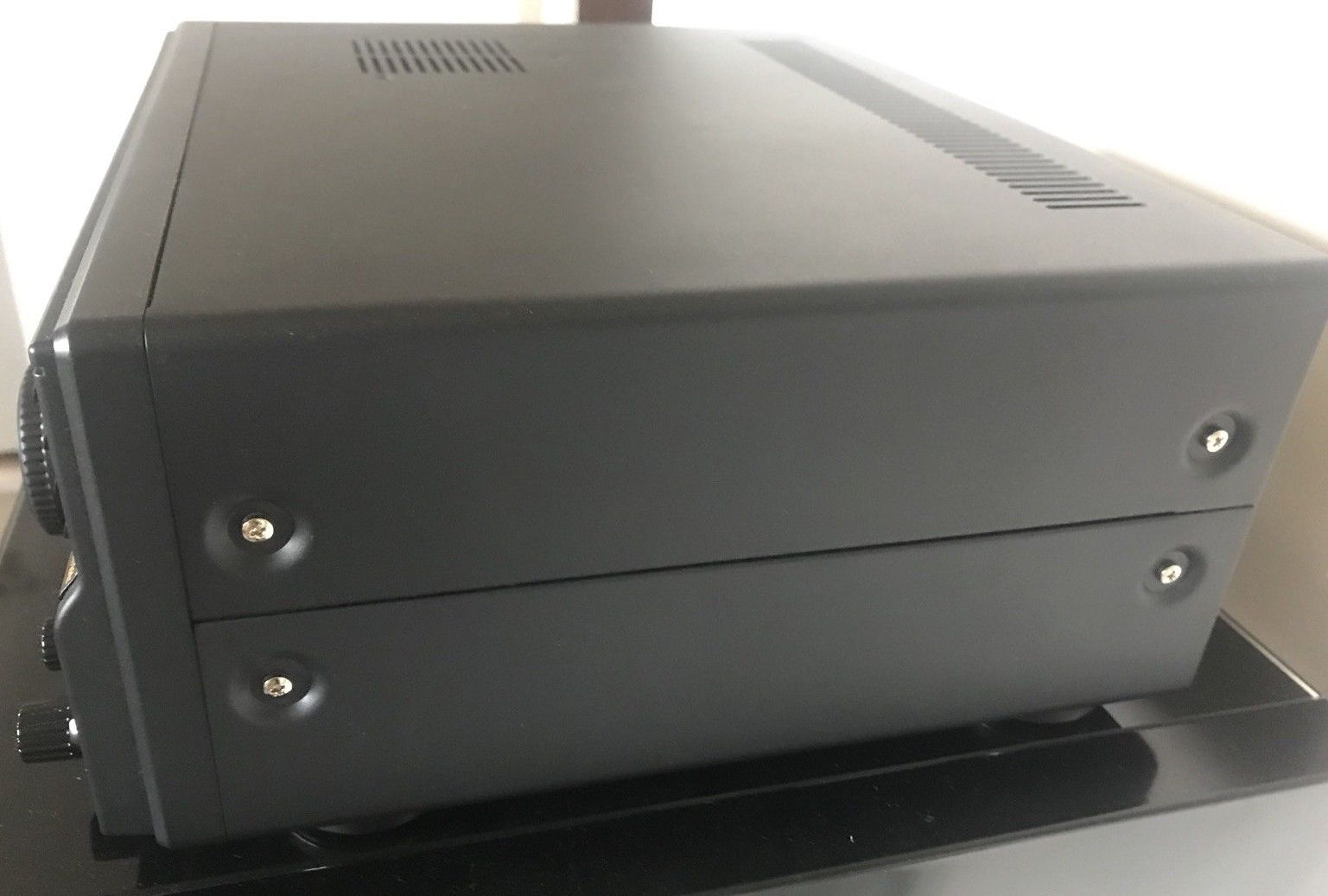

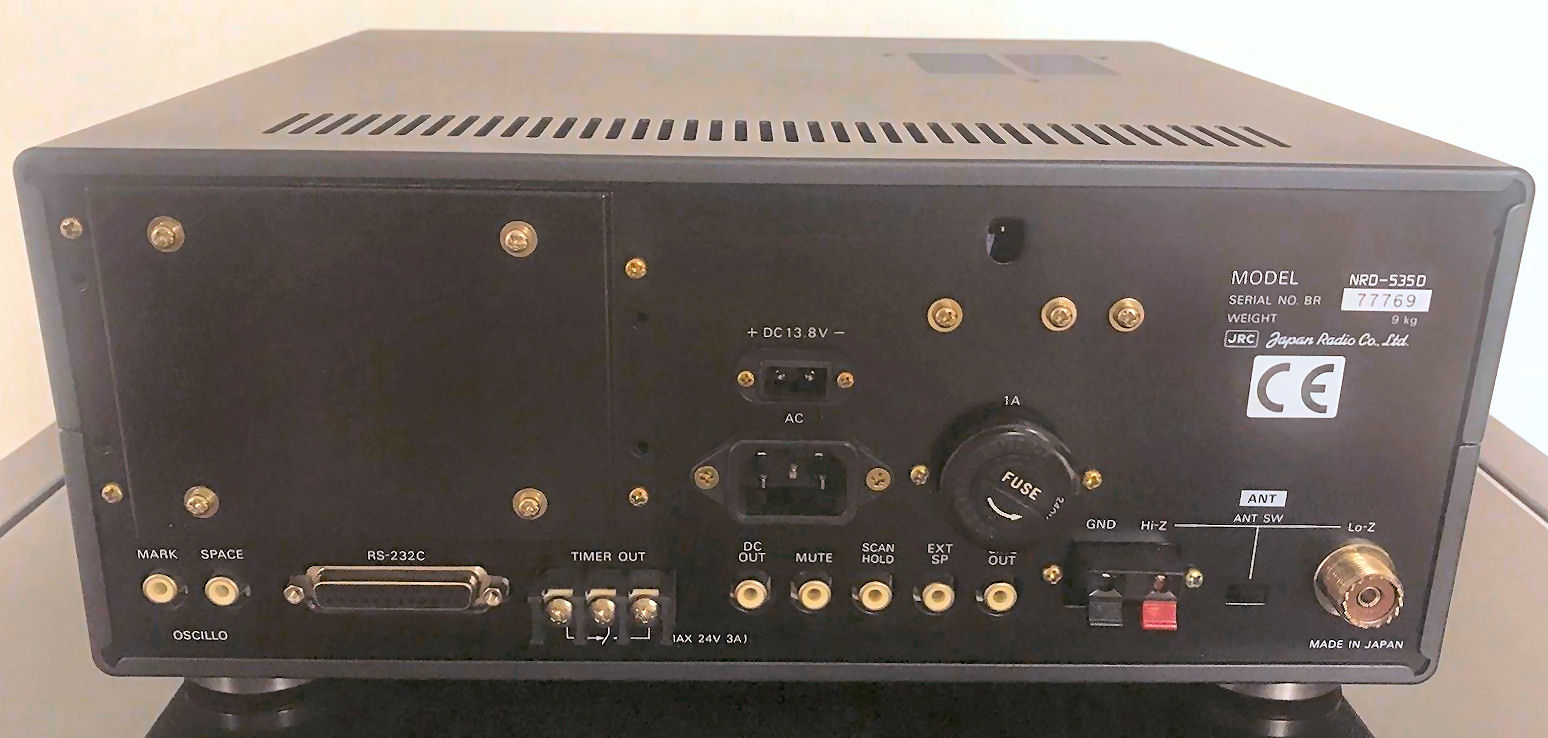

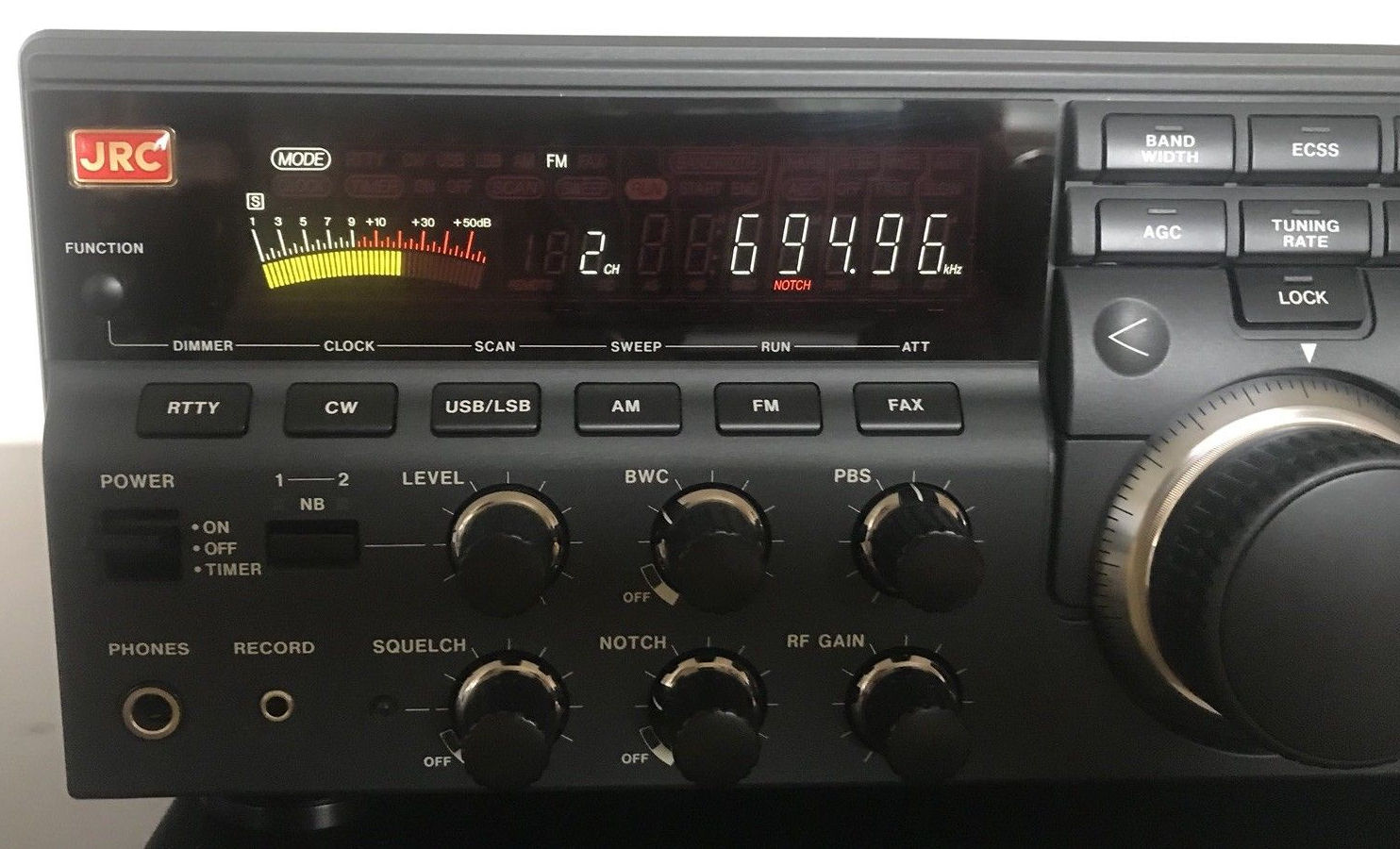

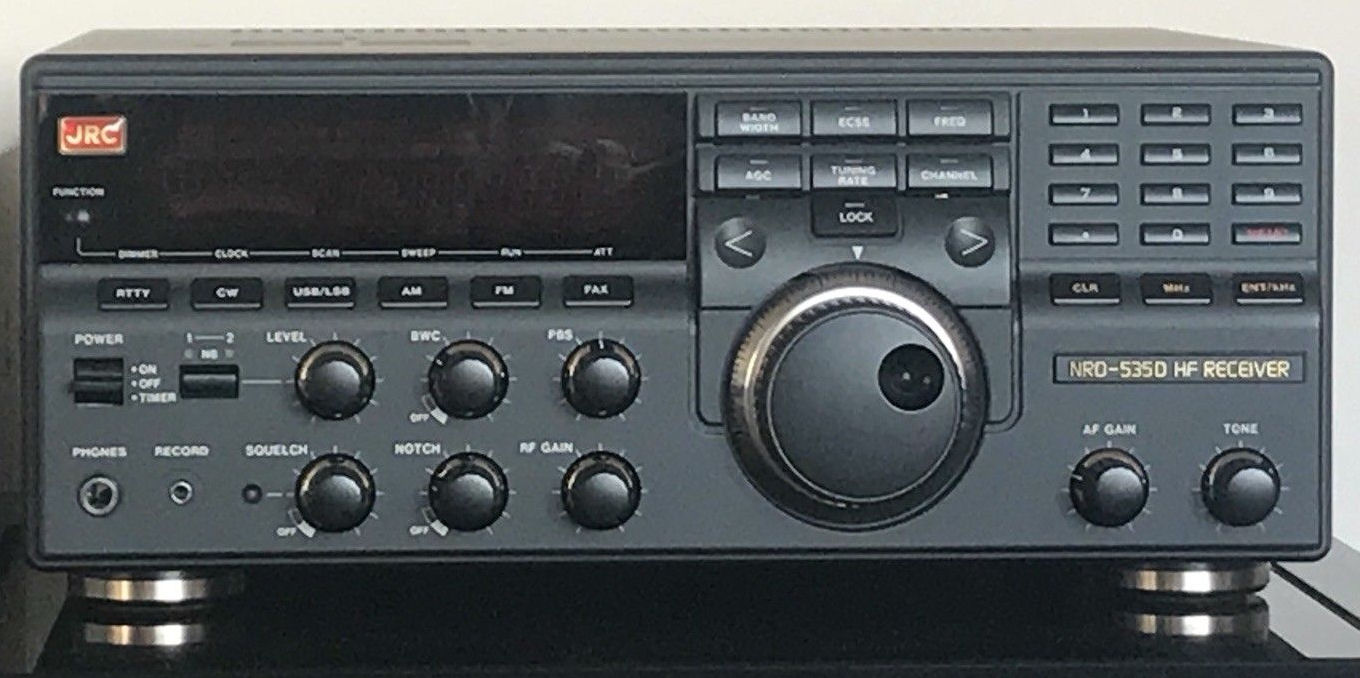

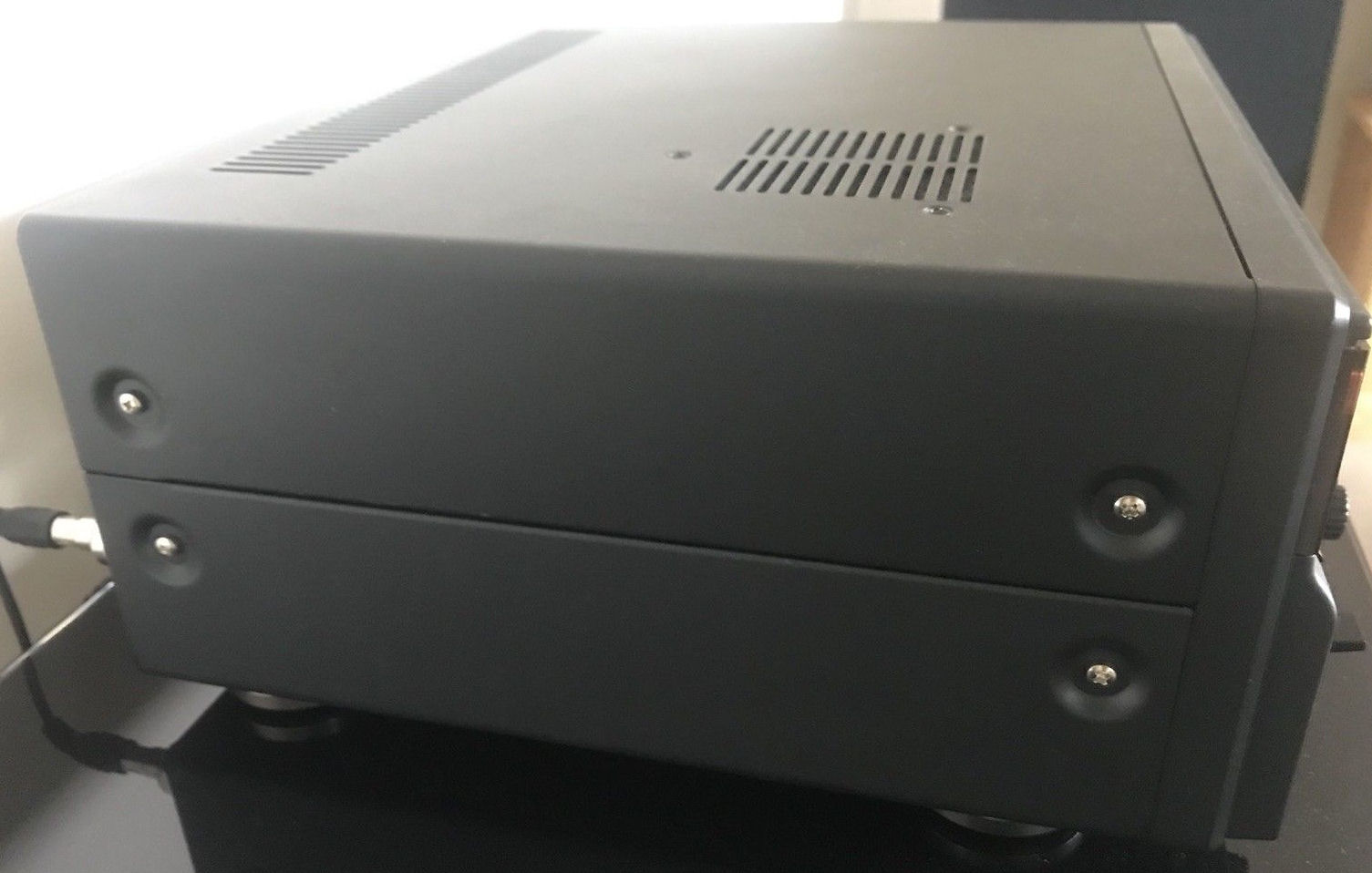

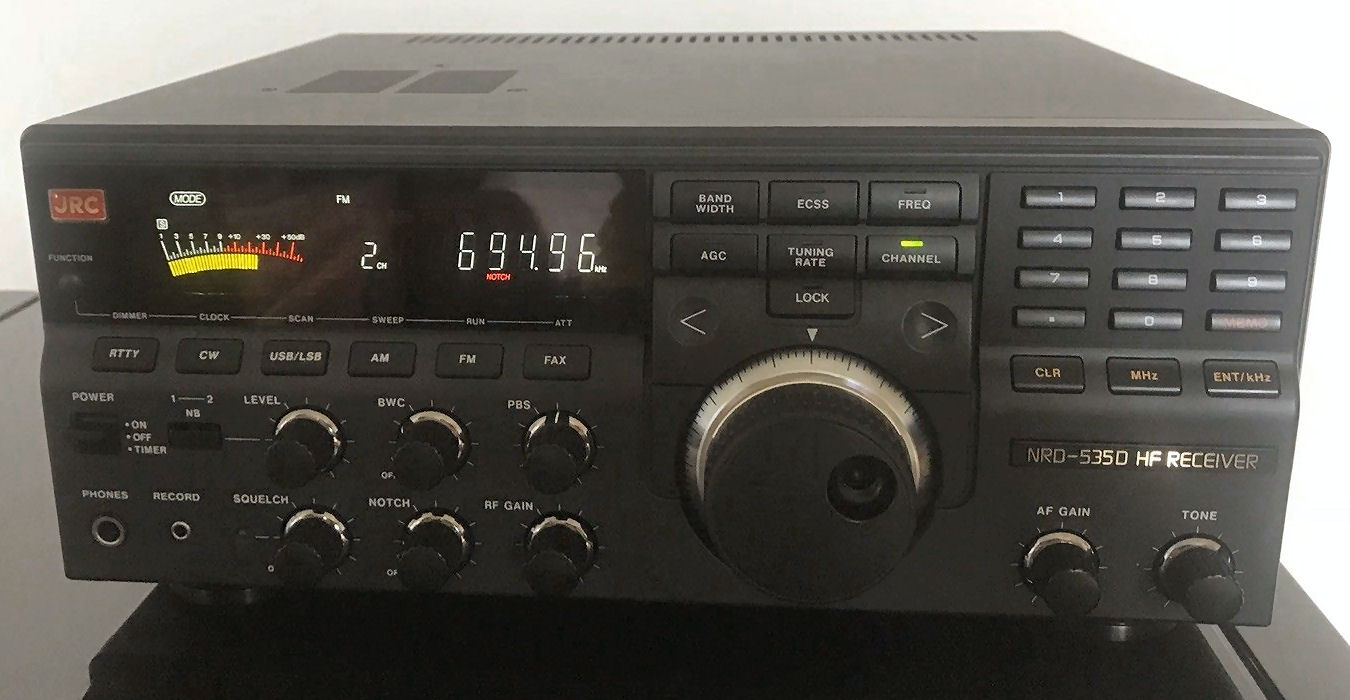

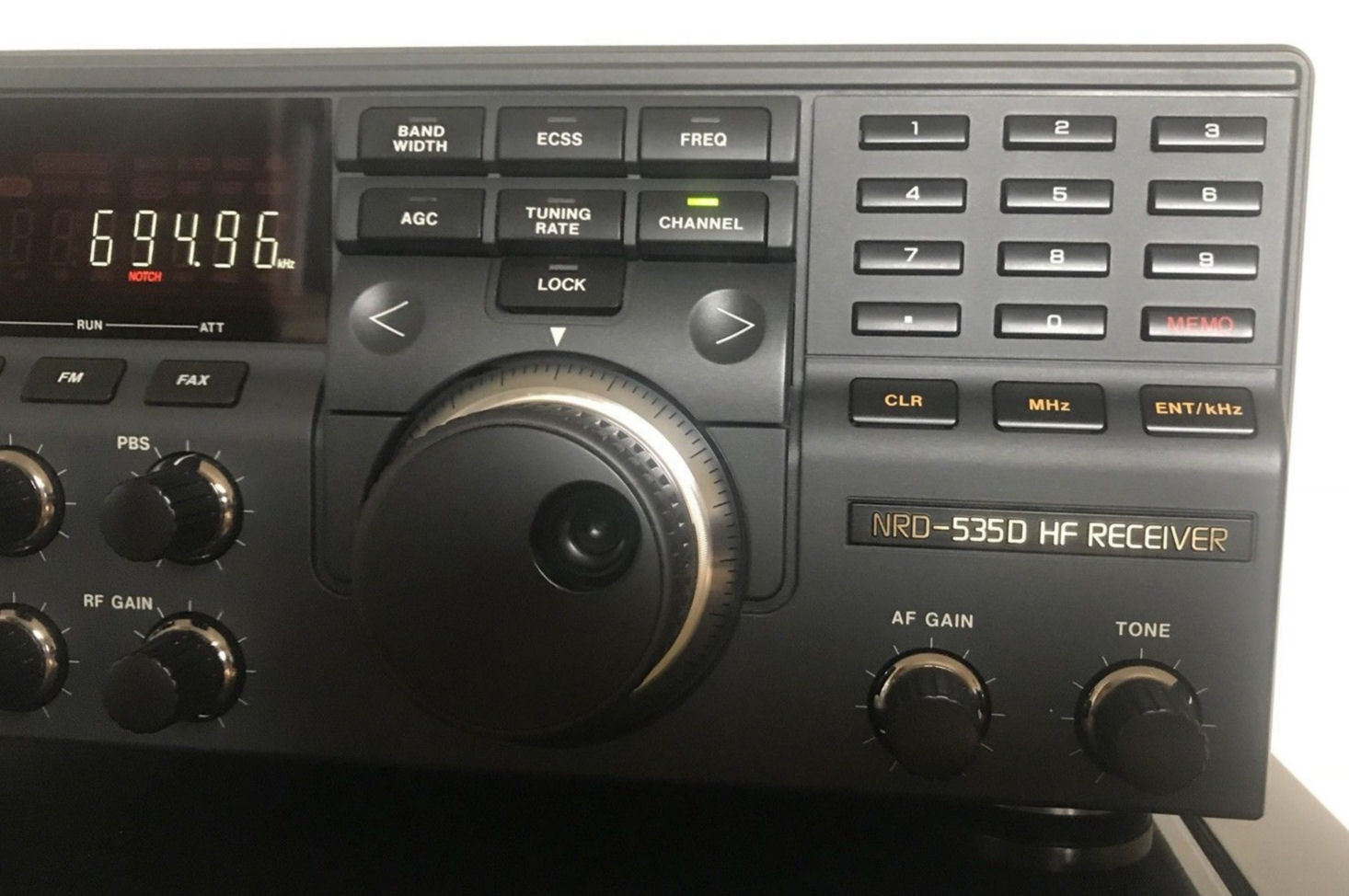

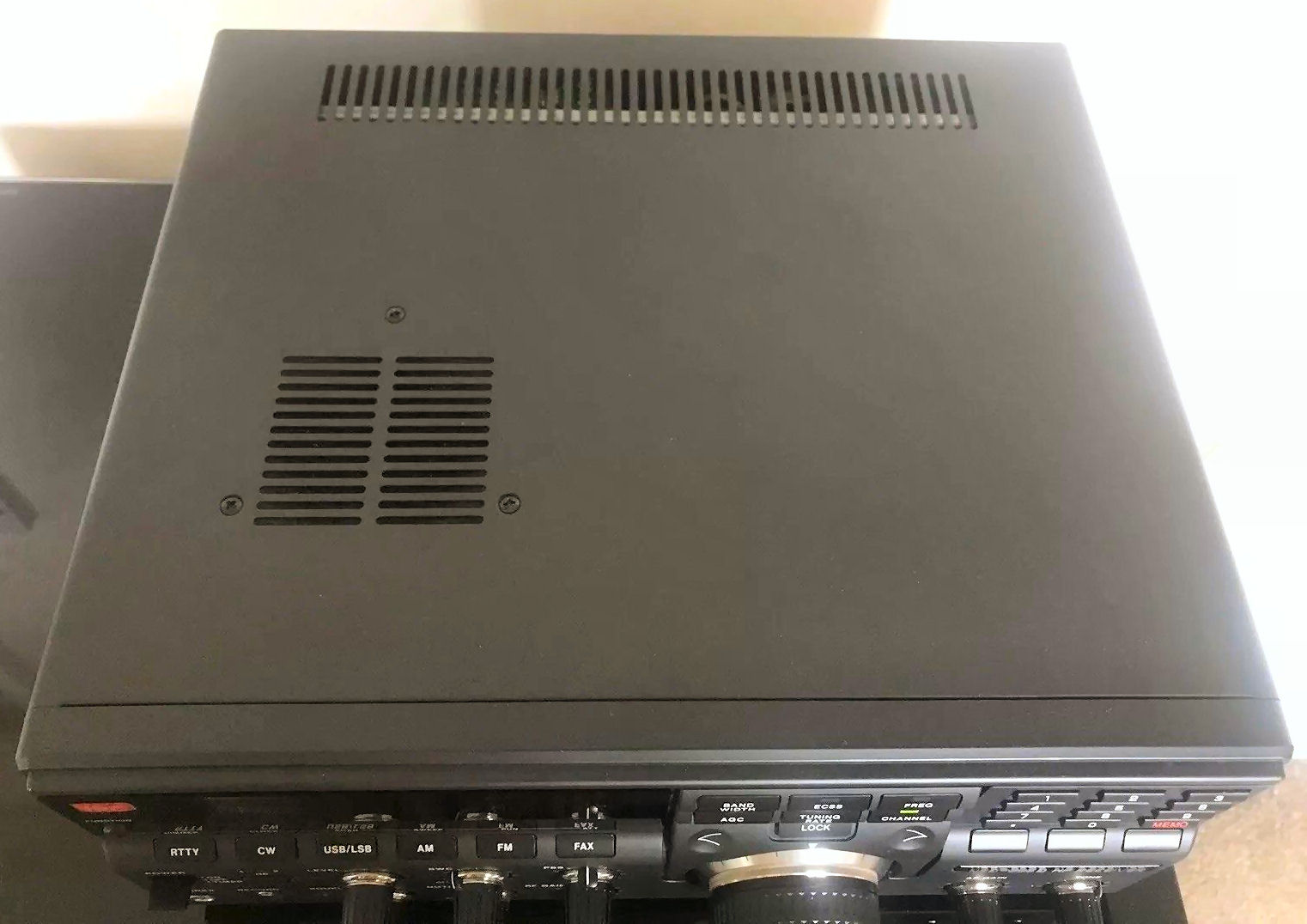

JRC NRD-535D

Type: Shortwave Receiver
Frequency Range: 90 KHz-30 MHz
Modes: AM/USB/LSB/CW/RTTY/FAX/FM
Sensitivity: .5 ÁV 1.6-30 MHz SSB/CW S+N/N=10dB
Selectivity: N/A
Image rejection: 70 dB (1.6 - 30 MHz)
Voltage: 100/120/220/240 VAC 50/60 Hz 35VA max
12 VDC 25W max
Current Drain: ? mA
Aerial Input: 50 or 600 ohmSelectivity (-6dB) ... AUX (12 kHz)
Dimensions (W*H*D): 330 x 130 x 280 mm
Weight: 8.5 Kg
Manufactured: 1991-1998
Other:
Related Documents:

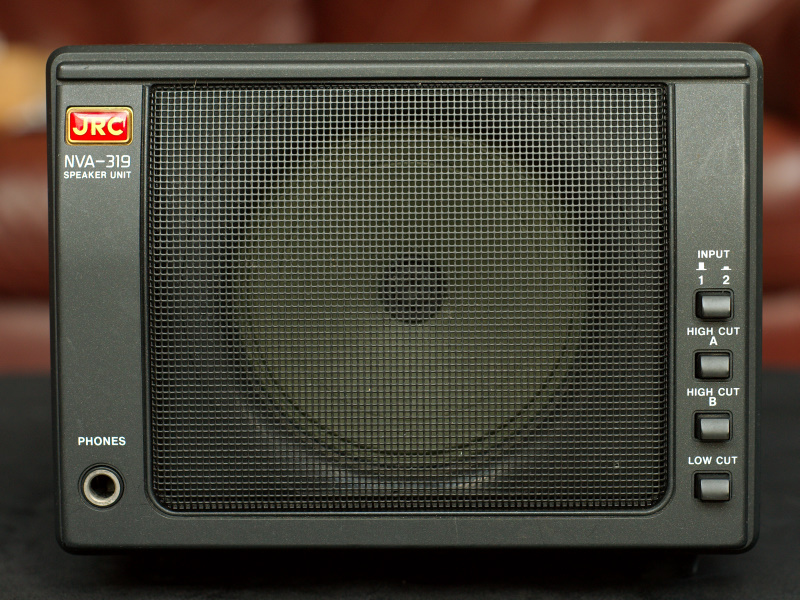

Matching Speaker:
