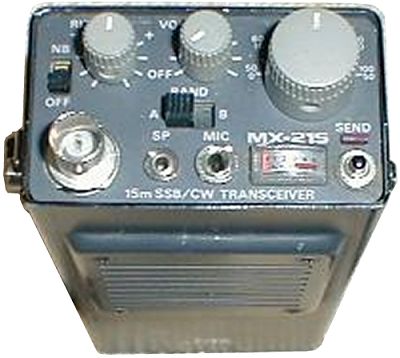

Jim MX-21S

Type: Amateur Transceiver
Frequency Range: 15 m (50 KHz per XTAL)
Mode: SSB/CW
RF Power output: 2 W
Sensitivity: N/A
Selectivity: N/A
Image rejection: N/A
Voltage: 9.5 VDC
Current Drain: RX: 68 mA
TX: Max 600 mA
Aerial Input: 50 ohms
Dimensions (W*H*D): 66*142*39 mm
Weight: 645 gr (batteries included)
Manufactured: Japan, 1983-2002
Other: VXO. Max 2 XTALS
