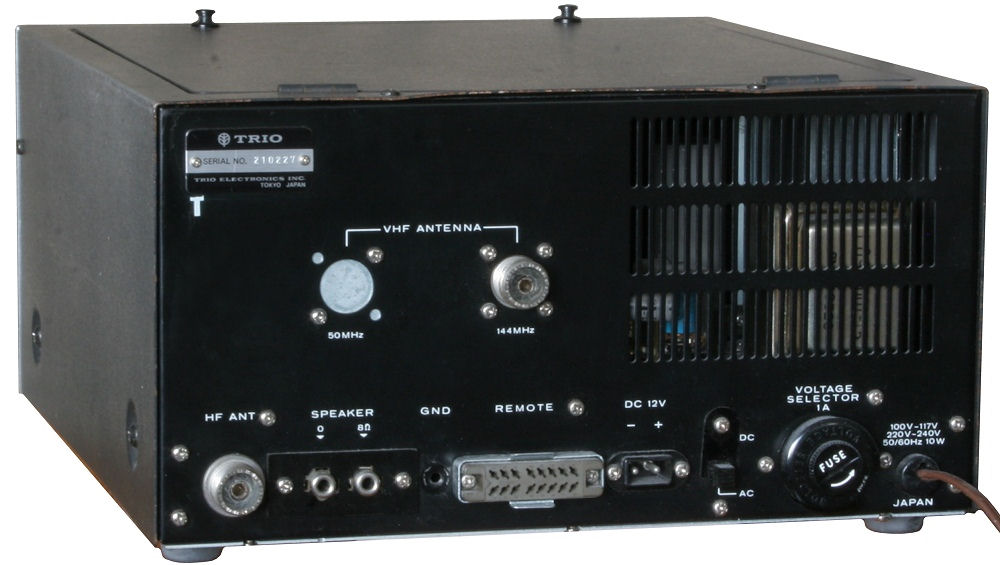

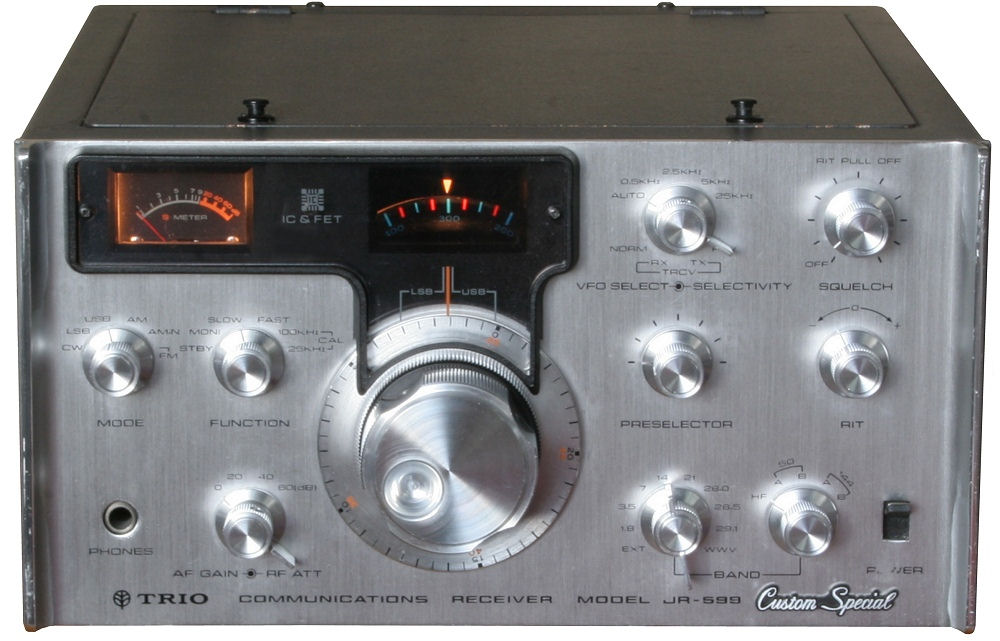

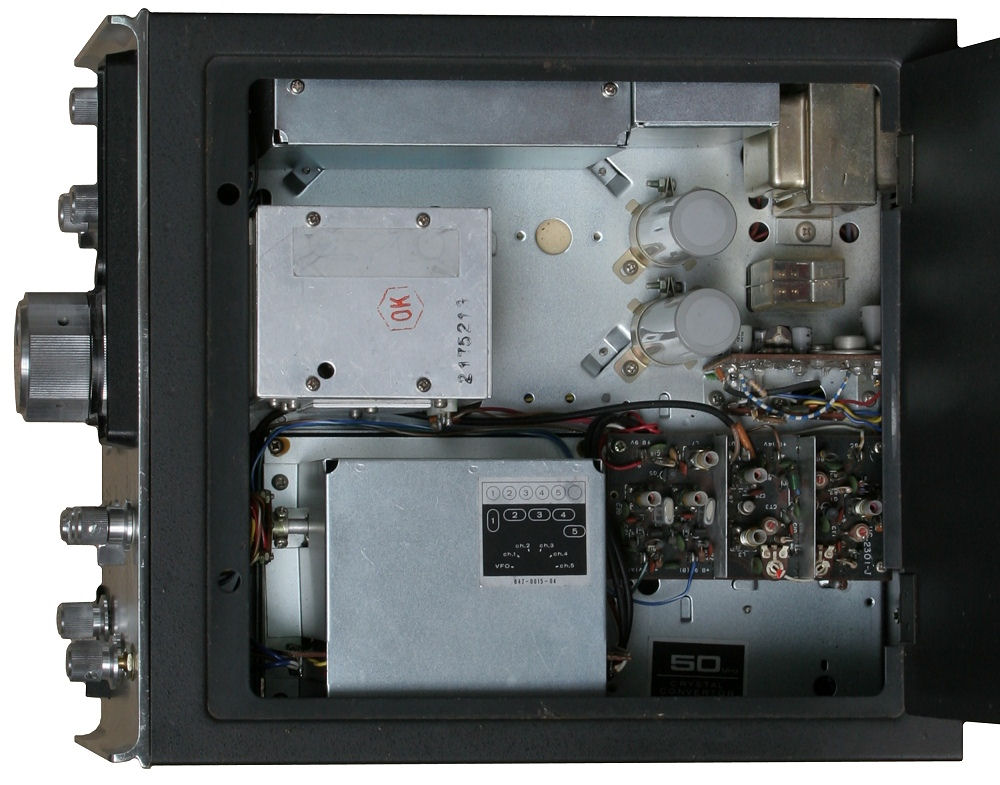

Trio JR-599 Custom Special (Type M)

Type: HF Receiver
Frequency Range: 1.8-2.3 MHz
3.5-4.0 MHz
7.0-7.5 MHz
14.0-14.5 MHz
21.0-21.5 MHz
28.0-28.5 MHz
28.5-29.1 MHz
29.1-29.7 MHz
144.0-147.4 MHz
Modes: AM/FM/SSB/CW
Tuning Steps: Continuous
Voltage: 12-15 VDC or Mains
Current Drain: Max 1 A @ 13.8 VDC
Aerial Input: 50-75 ohms, SO-239
Dimensions (W*H*D): 270*140*310 mm
Weight: 5.7 Kg
Manufactured: Japan, 197x-197x
Other: See Matching Transmitter:
TX-599 (Custom Special)
Related Documents: Trio JR-599 User Manual (2.73 MB)
