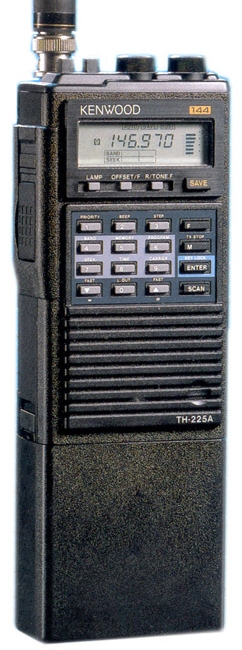

Kenwood TH-225A
| Type: |
Amateur VHF transceiver |
| Frequency Range: |
TX: 144-148 MHz |
| Mode: |
FM |
| RF Power output: |
Hi: 1.5-6 W (depending on voltage)
Lo: 0.5 W |
| Sensitivity: |
Less Than 0.1 uV |
| Selectivity: |
12 KHz (-6 dB), 24 KHz (-40 dB) |
| Image rejection: |
N/A |
| Voltage: |
6.3-15 VDC |
| Current Drain: |
Rx: 50 mA
Tx: Max 1.9 A |
| Impedance: |
50 ohms |
| Dimensions (W*H*D): |
70 x 198 x 40 mm |
| Weight: |
600 gr (with Ni-Cd Battery & Antenna) |
| Manufactured: |
|
| Other: |
|
| Related Documents: |
User Manual (1.31 MB) |
|
