| Type: |

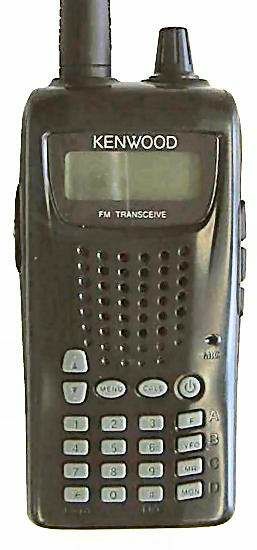

Amateur VHF transceiver |
| Frequency Range: |
TX: 144-148 MHz
RX: 136-174 MHz |
| Mode: |
FM |
| RF Power output: |
Hi: 3.5-5 W (depending on voltage)
Lo: 0.3 W |
| Sensitivity: |
0.18 uV (12 dB SINAD, between 144-148 MHz) |
| Selectivity: |
10 KHz (-6 dB), 28 KHz (-40 dB) |
| Image rejection: |
N/A |
| Voltage: |
6-9 VDC (PB-43N or BT-14 battery packs) |
| Current Drain: |
Rx: 30-130 mA
Tx: Max 2 A |
| Impedance: |
50 ohms |
| Dimensions (W*H*D): |
58*120*39 mm (with BT-14) |
| Weight: |
259 gr (with BT-14) |
| Manufactured: |
2007-200x |
| Other: |
|
| Related Documents: |
|
