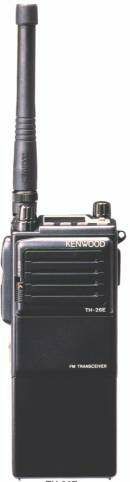

Kenwood TH-26E
| Type: |
Amateur VHF Transceiver |
| Frequency Range: |
144-146 MHz |
| Modes: |
FM |
| RF Power output: |
Hi: 2.5-5 W (depending on voltage)
Lo: 0.5 W
El: 20 mW |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
6-16 VDC |
| Current Drain: |
RX: Max 55 mA
TX: Max 1.5 A |
| Aerial Input: |
50 ohms, BNC |
| Dimensions (W*H*D): |
58*135.5*29.5 mm |
| Weight: |
380 gr (with PB-10, antenna, and handstrap) |
| Manufactured: |
199x-199x (early nineties) |
| Other: |
|
| Related Documents: |
User Manual (6.67 Mb) |
|
