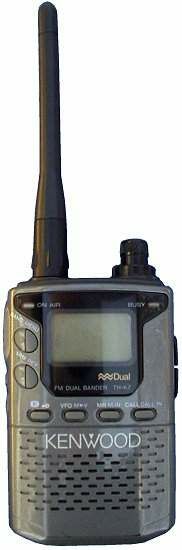

Kenwood TH-K7
| Type: |
Amateur VHF/UHF Transceiver |
| Frequency Range: |
TX: 144-146 / 430-440 MHz (Asia)
RX: 76-100 / 118-900 MHz |
| Modes: |
FM |
| RF Power output: |
0.3/0.3 W |
| Sensitivity: |
0.16 uV (12 dB SINAD, 145 MHz), 0.18 uV (12 dB SINAD, 430 MHz) |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
2.4-3 VDC (2*R6/AA) |
| Current Drain: |
RX: 50 mA
TX: 280 mA |
| Aerial Input: |
50 ohms, SMA |
| Dimensions (W*H*D): |
58*102*27 mm |
| Weight: |
160 gr (with batteries) |
| Manufactured: |
2003-200x |
| Other: |
|
| Related Documents: |
|
|
