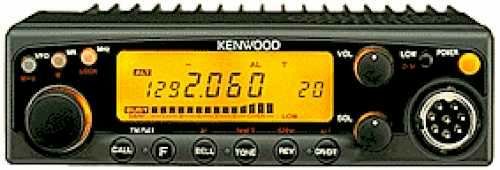

Kenwood TM-541
| Type: |
Amateur UHF Transceiver |
| Frequency Range: |
1240-1300 MHz |
| Modes: |
FM |
| RF Power output: |
Hi: 10 W
Lo: 1 W |
| Sensitivity: |
0.16 uV (12 dB SINAD) |
| Selectivity: |
12 KHz (-6 dB), 36 KHz (-60 dB) |
| Image rejection: |
N/A |
| Voltage: |
13.8 VDC |
| Current Drain: |
RX: Max 600 mA
TX: Max 6 A |
| Aerial Input: |
50 ohms, N |
| Dimensions (W*H*D): |
? mm |
| Weight: |
? Kg |
| Manufactured: |
199x-199x |
| Other: |
20 memories |
