| Type: |

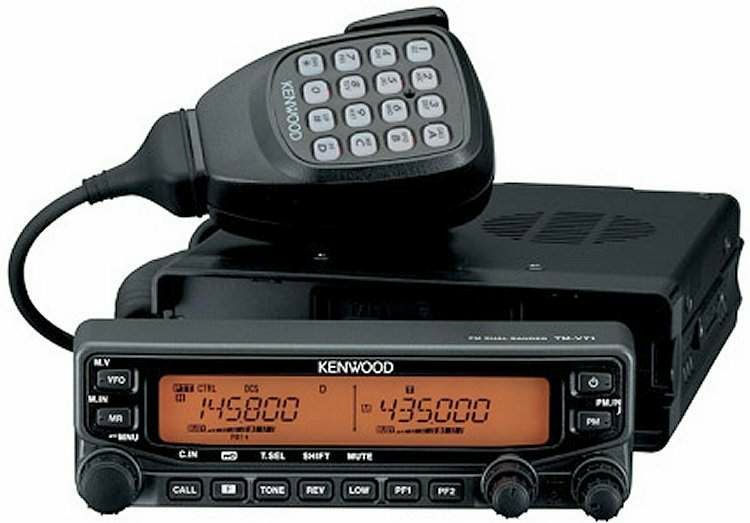

Amateur VHF/UHF transceiver |
| Frequency Range: |
TX: 144-146 / 430-440 MHz
RX: 118-524 / 800-1300 MHz |
| Mode: |
TX: FM
RX: AM/FM |
| RF Power output: |
Hi: 50/50 W
Mid: 10/10 W
Lo: 5/5 W |
| Sensitivity: |
<0.16 uV (12 dB SINAD) |
| Selectivity: |
11 KHz (-6 dB), 30 KHz (-50 dB) |
| Image rejection: |
N/A |
| Voltage: |
13.8 VDC |
| Current Drain: |
RX: Max ? A
TX: 4-13 A |
| Impedance: |
50 ohms, SO-239 |
| Dimensions (W*H*D): |
Body: 140*43*181 mm
Panel: 140*43*38 mm |
| Weight: |
1.5 Kg |
| Manufactured: |
2007-200x |
| Other: |
CTCSS/DCS. Digital voice recorder option. Twin RX |
| Related Documents: |
User Manual (4.27 MB) |
