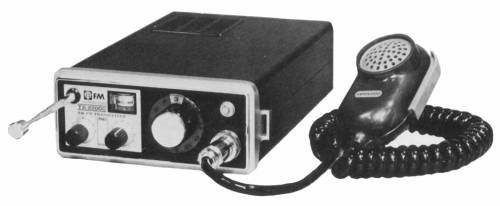

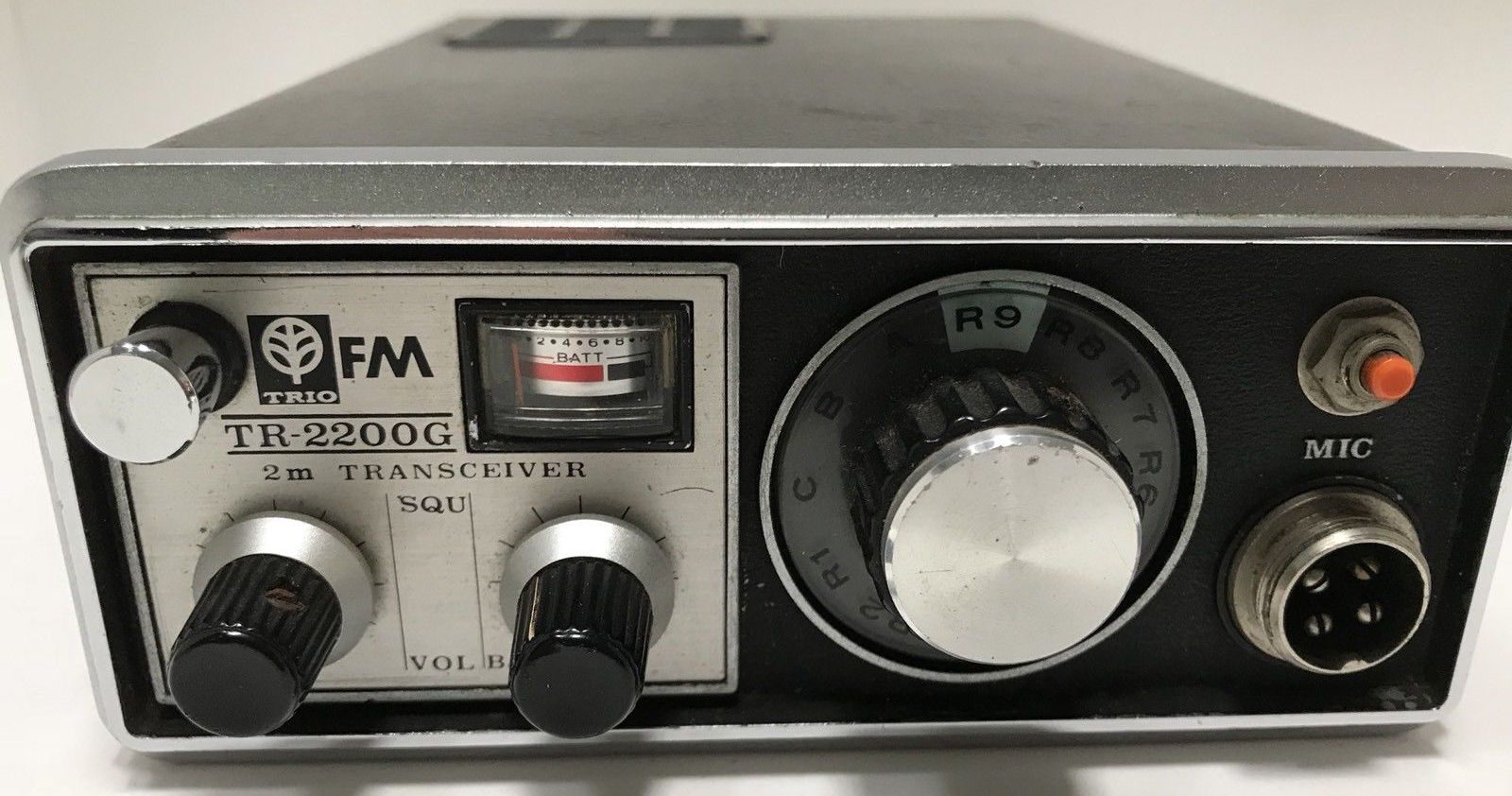

Trio TR-2200G
| Type: |
Amateur VHF Transceiver |
| Frequency Range: |
144-146 MHz |
| Modes: |
FM |
| RF Power output: |
1 W |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
10.4-15.2 VDC |
| Current Drain: |
RX: 55 mA
TX: Max 420 mA |
| Aerial Input: |
50 ohms, SO-239 or telescopic whip |
| Dimensions (W*H*D): |
135*58*191 mm |
| Weight: |
1.8 Kg (10*NiCd and mic included) |
| Manufactured: |
Japan, 197x-197x |
| Other: |
12 channels. XTAL |
| Related Documents: |
|
 |
