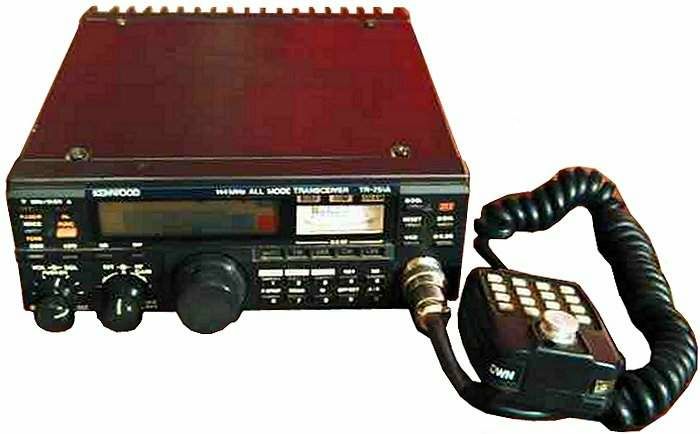

Kenwood TR-751A
| Type: |
Amateur VHF Transceiver |
| Frequency Range: |
144-148 MHz |
| Modes: |
All-mode |
| RF Power output: |
Hi: 25 W
Lo: 5 W |
| Sensitivity: |
SSB/CW: Better thatn 0.13 uV (10 dB S+N/N)
FM: Better than 0.2 uV (12 dB SINAD) |
| Selectivity: |
SSB/CW: 2.2 KHz (-6 dB), 4.8 KHz (-60 dB)
FM: 12 KHz (-6 dB), 24 KHz (-60 dB) |
| Image rejection: |
Better than 60 dB |
| Voltage: |
11-16 VDC |
| Current Drain: |
RX: Max 1 A
TX: Max 6 A |
| Aerial Input: |
50 ohms, SO-239 |
| Dimensions (W*H*D): |
180*60*195 mm |
| Weight: |
2.1 Kg |
| Manufactured: |
198x-19xx |
| Other: |
10 memories |
| Related Documents: |
User Manual (12.7 Mb) |
|
