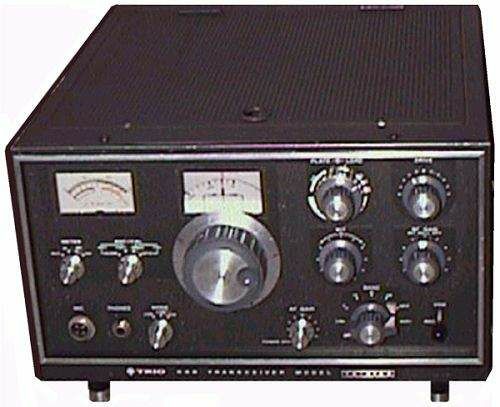

Trio TS-510
| Type: |
Amateur HF Transceiver |
| Frequency Range: |
10-80 m |
| Modes: |
AM/SSB/CW |
| RF Power output: |
15-80 m: 160 W (input)
10 m: 120 W (input) |
| Sensitivity: |
15-80 m: better than 0.5 uV (10 dB S/N)
10 m: better than 1.5 uV (10 dB S/N) |
| Selectivity: |
1.2 KHz (-6 dB), 2.4 KHz (-60 dB) |
| Image rejection: |
50 dB |
| Voltage: |
Mains (with PS-510) |
| Current Drain: |
RX: ? A
TX: ? A |
| Aerial Input: |
50-75 ohms, SO-239 |
| Dimensions (W*H*D): |
330*215*345 mm |
| Weight: |
9.5 Kg |
| Manufactured: |
19xx-19xx |
| Other: |
|
| Related Documents: |
User Manual (5.28 Mb) |
|
