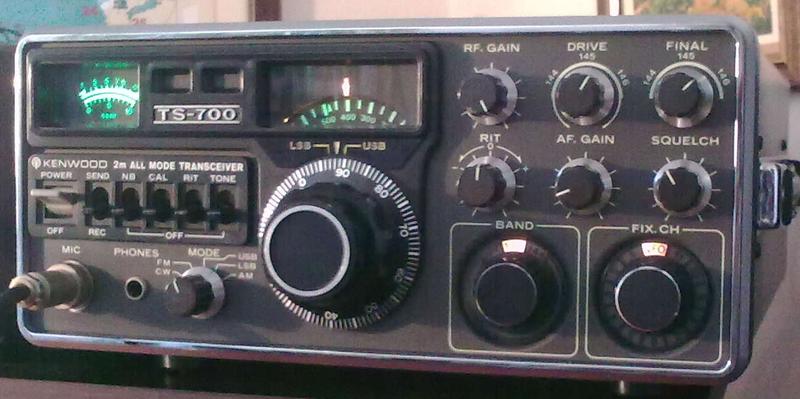

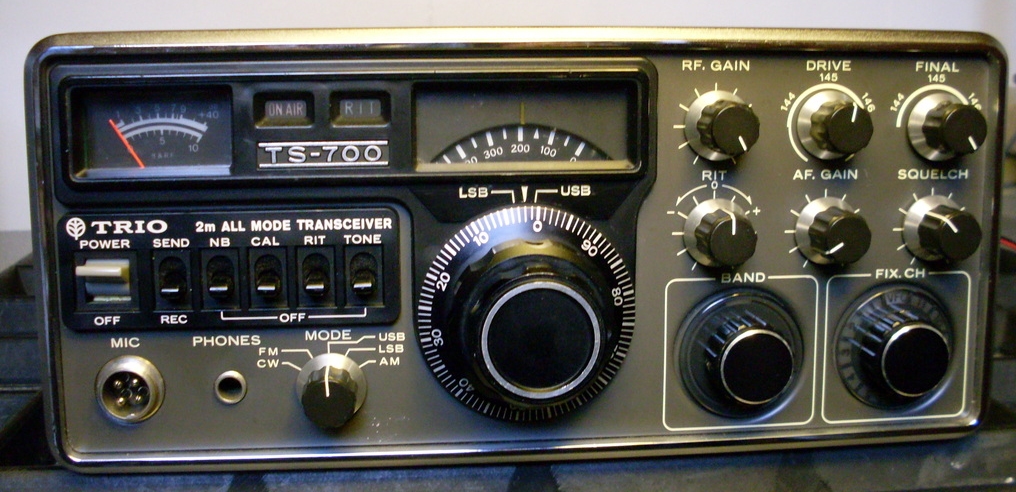

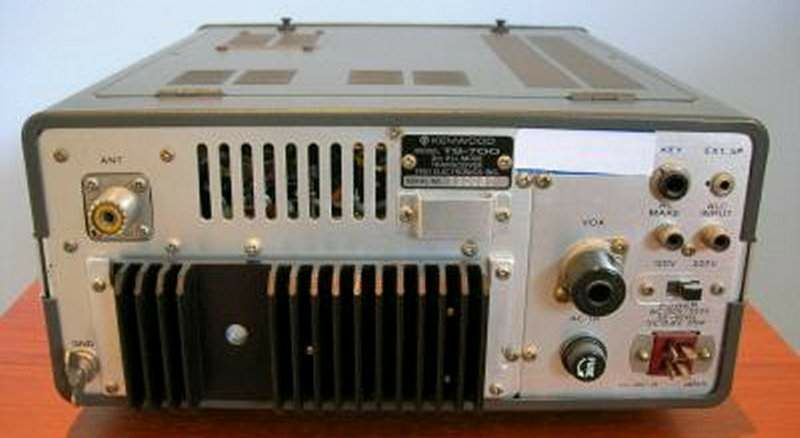

Kenwood TS-700
| Type: |
Amateur VHF Transceiver |
| Frequency Range: |
144-148 MHz |
| Modes: |
AM/FM/SSB/CW |
| RF Power output: |
10 W (AM: 2 W) |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
13.8 VDC or Mains 120/240 VAC |
| Current Drain: |
RX: ? mA
TX: Max 4 A |
| Aerial Input: |
50 ohms |
| Dimensions (W*H*D): |
278*124*320 mm |
| Weight: |
11 Kg |
| Manufactured: |
197x-19xx |
| Other: |
|
| Related Documents: |
|
|
