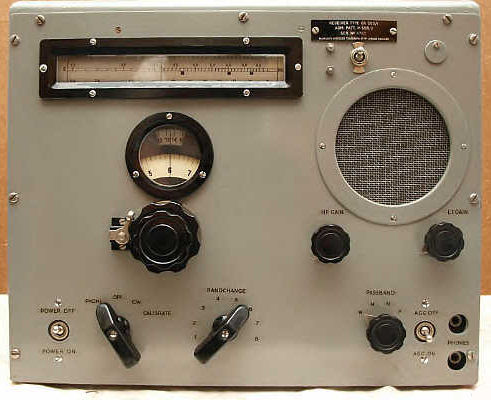

Marconi CR300


Type: HF Receiver
Frequency Range: Band1: 0.15-0.85 MHz
Band2: 0.85-0.21 MHz
Band3: 0.21-0.55 MHz
Band4: 0.375-1.00 MHz
Band5: 1.00-2.60 MHz
Band6: 2.6-6.8 MHz
Band7: 6.8-17.0 MHz
Band8: 15.0-25.0 MHz
Modes: AM/CW
Receiver System: N/A
Sensitivity: N/A
Selectivity: N/A
Image Rejection: N/A
Voltage: Mains
Current Drain: 85 W @ 250 VAC
Impedance: 100 ohms balanced or unbalanced. Hi-Z
Dimensions (W*H*D): 16 x 12.25 x 16.5"
Weight: 82 Lbs
Manufactured: 19xx-19xx
Other:
Related Documents: User Manual (2.31 MB)
