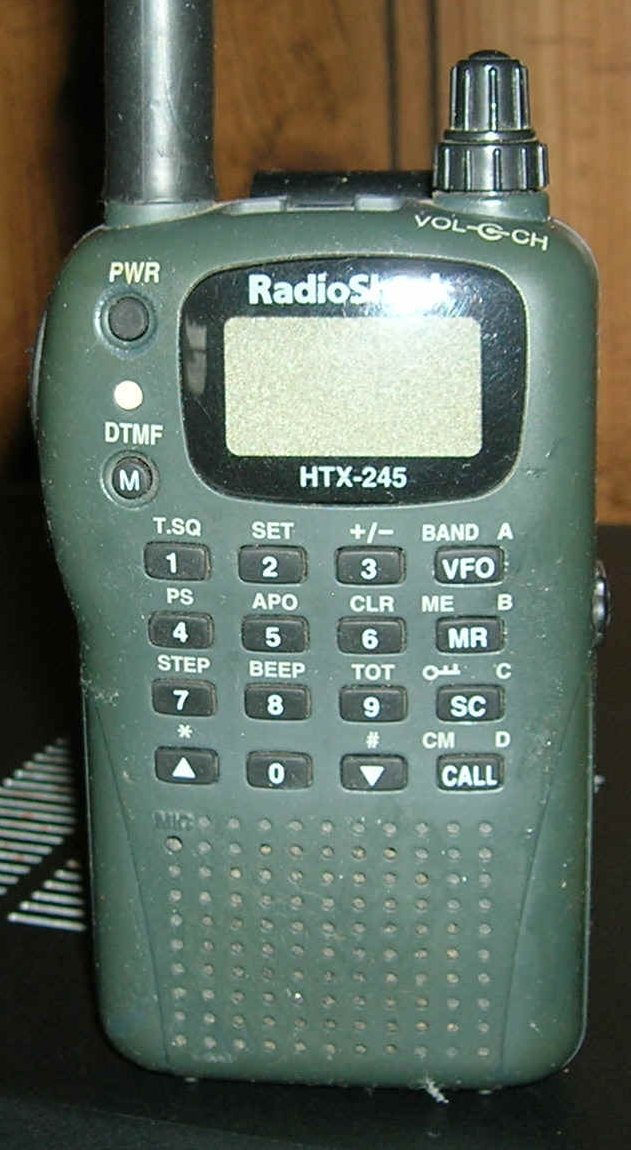

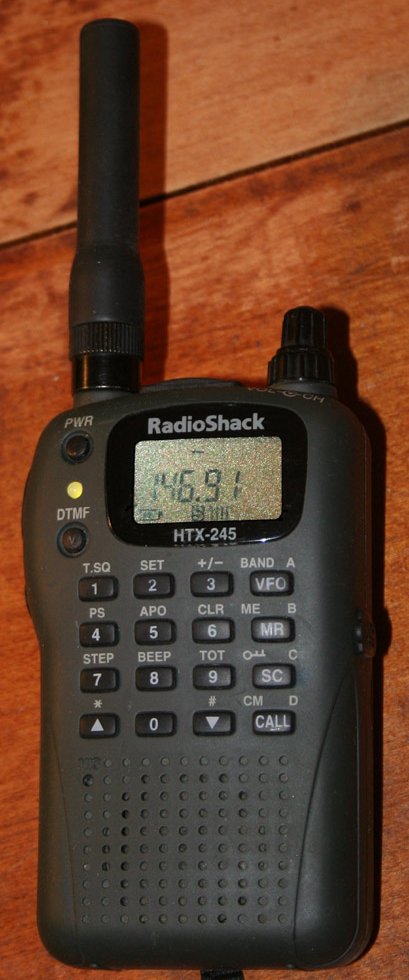

RadioShack HTX-245 {USA Catalog Number: 19-1106}*
| Type: |
Amateur VHF Transceiver |
| Frequency Range: |
Standard: 144-148 / 438-450 MHz
Extended: 142-150 / 438-450 MHz |
| Modes: |
FM |
| RF Power output: |
7.5mW to 1.5W |
| Frequency Steps: |
N/A |
| Voltage: |
4.5-6 VDC |
| Current Drain: |
Max: 600 mA |
| Impedance: |
50 ohms |
| Dimensions (W*H*D): |
62 x 119 x 30 mm |
| Weight: |
145 Kg |
| Manufactured: |
19xx-19xx |
| Other: |
N/A |
Related Documents: |
Extended Range Addendum (235 Kb) |
 |
