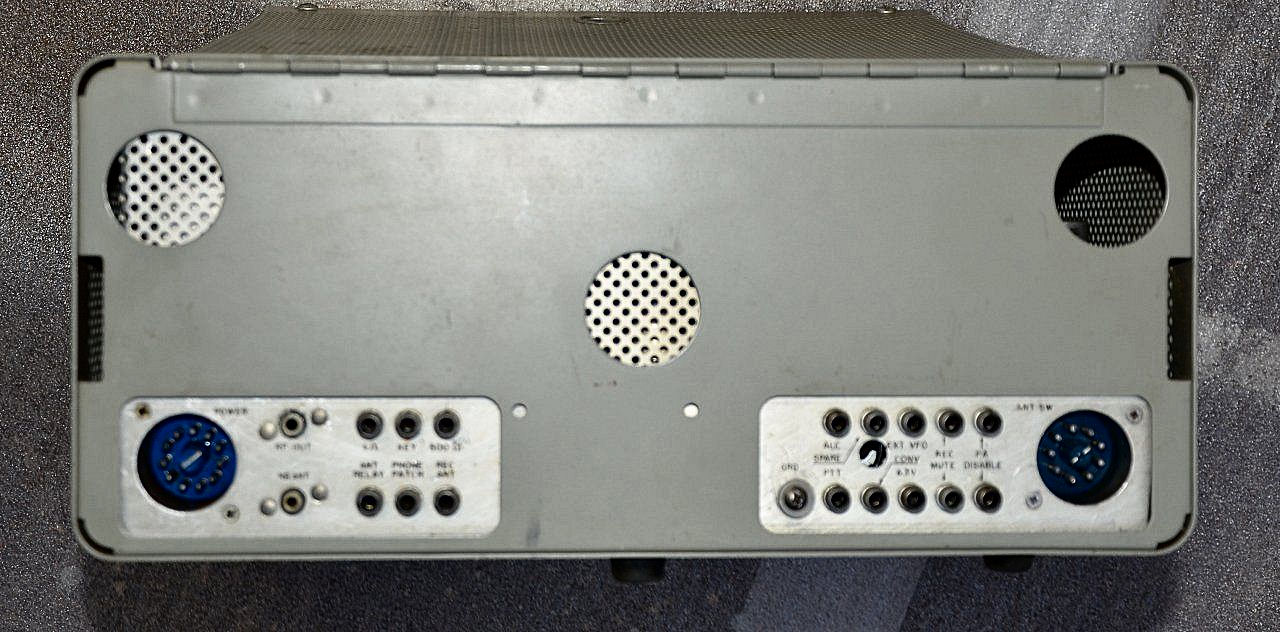

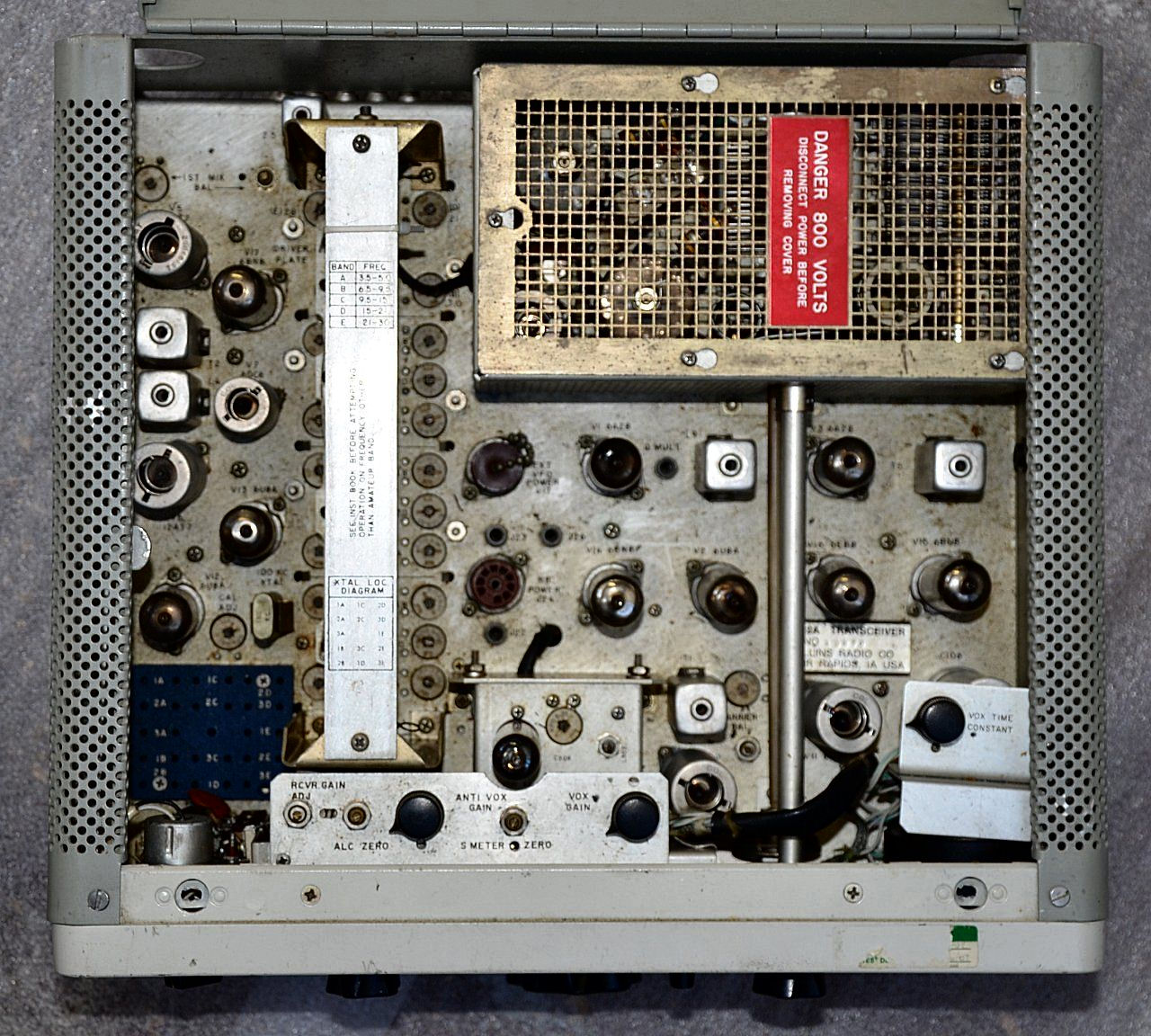

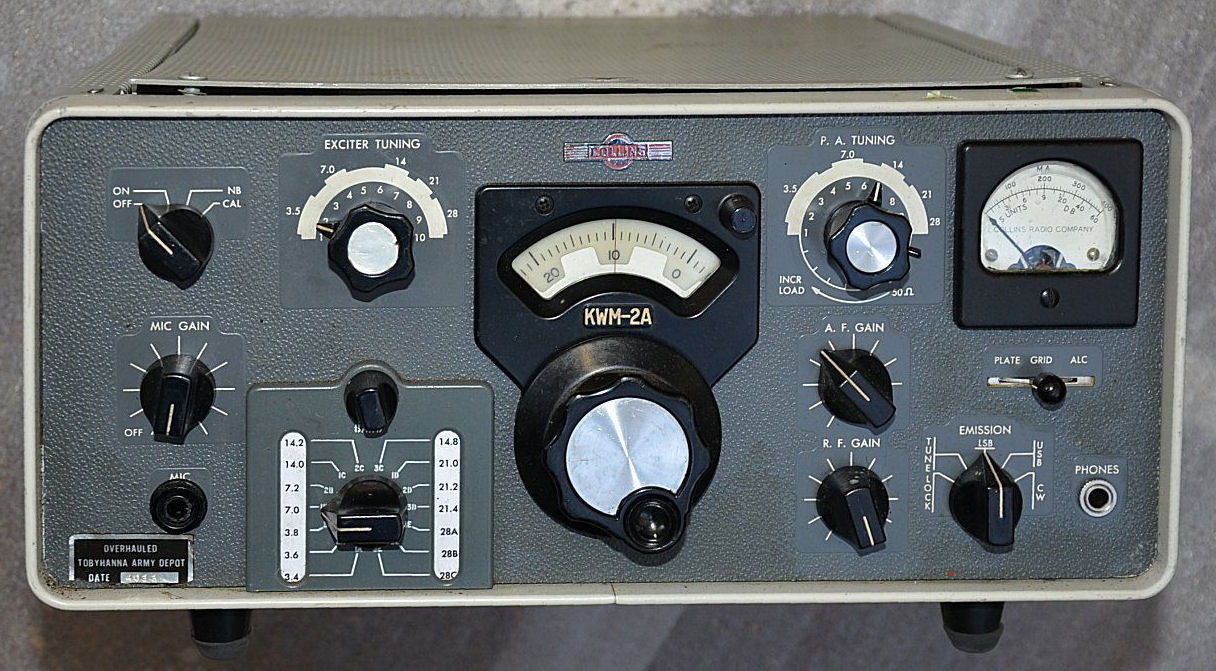

Collins KWM-2A

Type: Amateur HF Transceiver
Frequency Range: 10-80 m
Modes: SSB/CW
RF power output: 100 W
Sensitivity: N/A
Selectivity: N/A
Image rejection: N/A
Voltage: Mains
Current Drain: ?
Aerial Input: 50 ohms
Dimensions (W*H*D): ? mm
Weight: ? Kg
Manufactured: USA, 1959-19xx
Other: This version has MARS capability with an extra
board for 14 crystals outside the ham bands.
Related Documents:

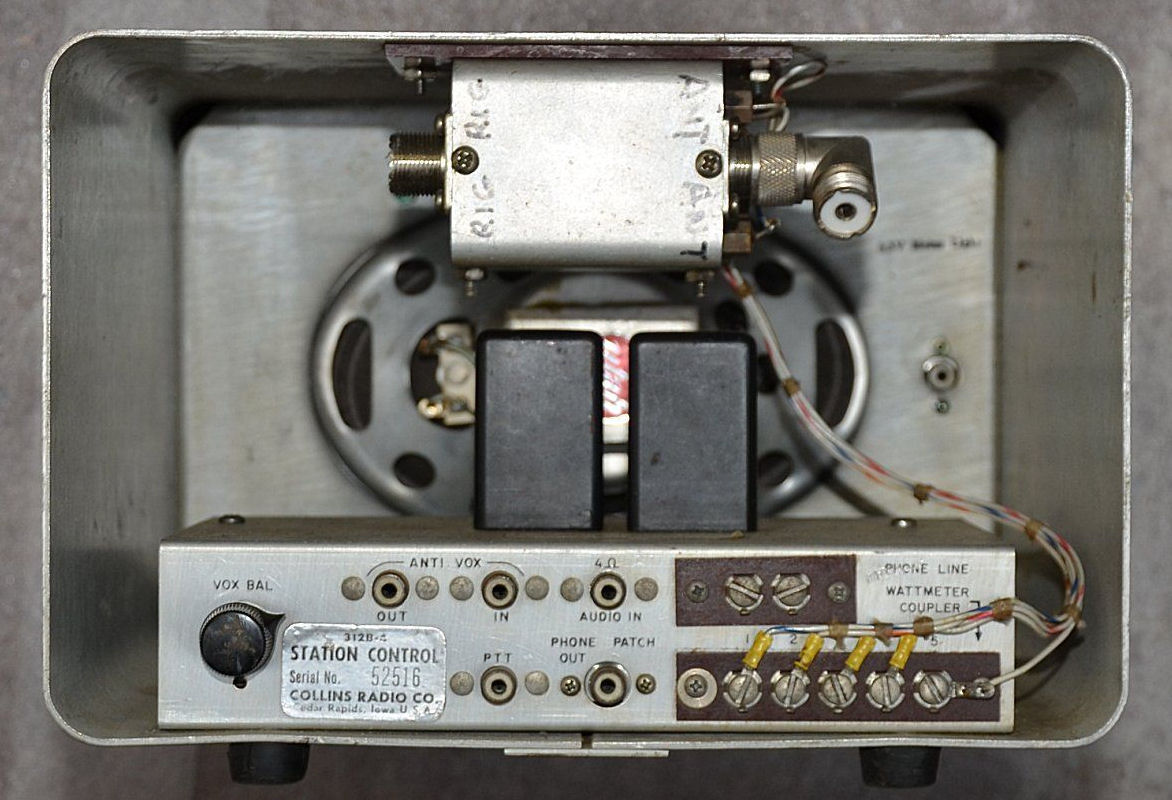

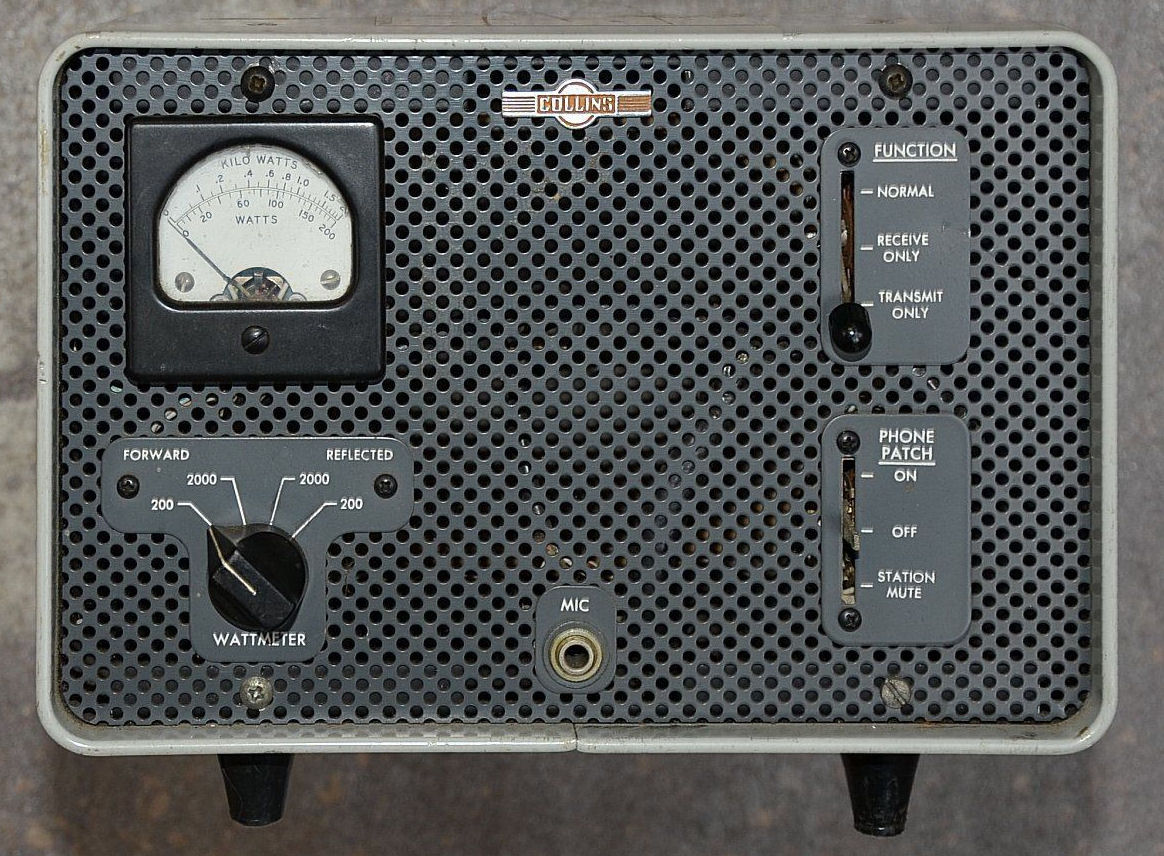

Matching SWR/Phone Patch/Speaker:

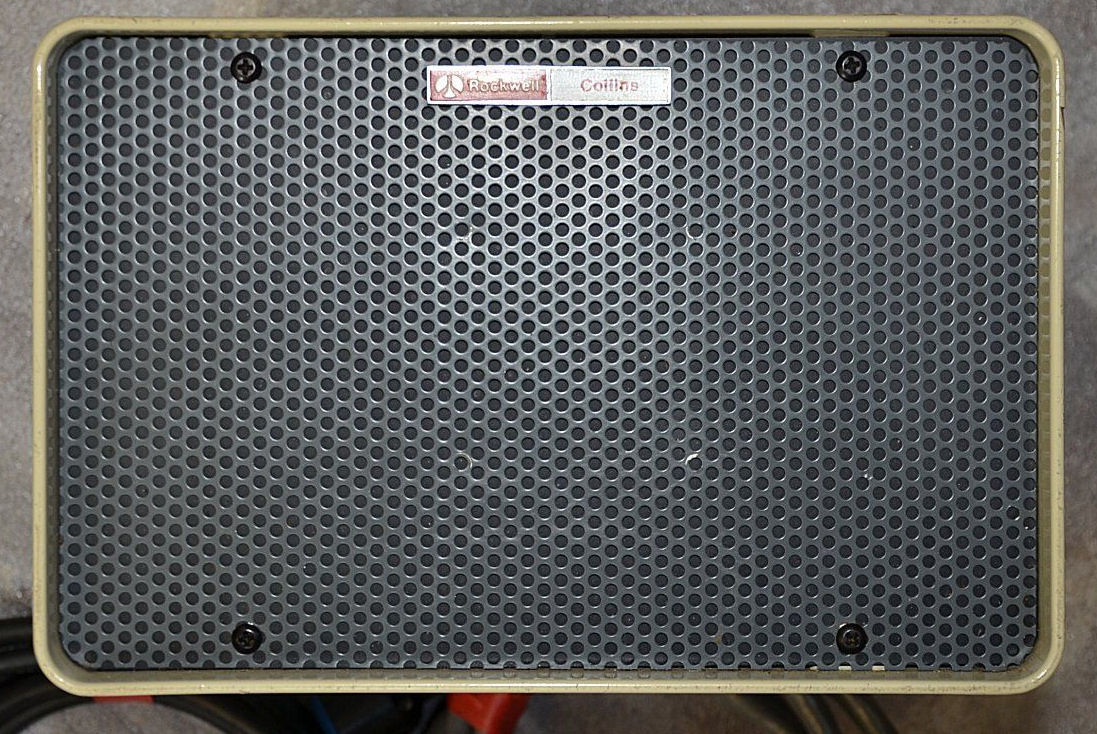

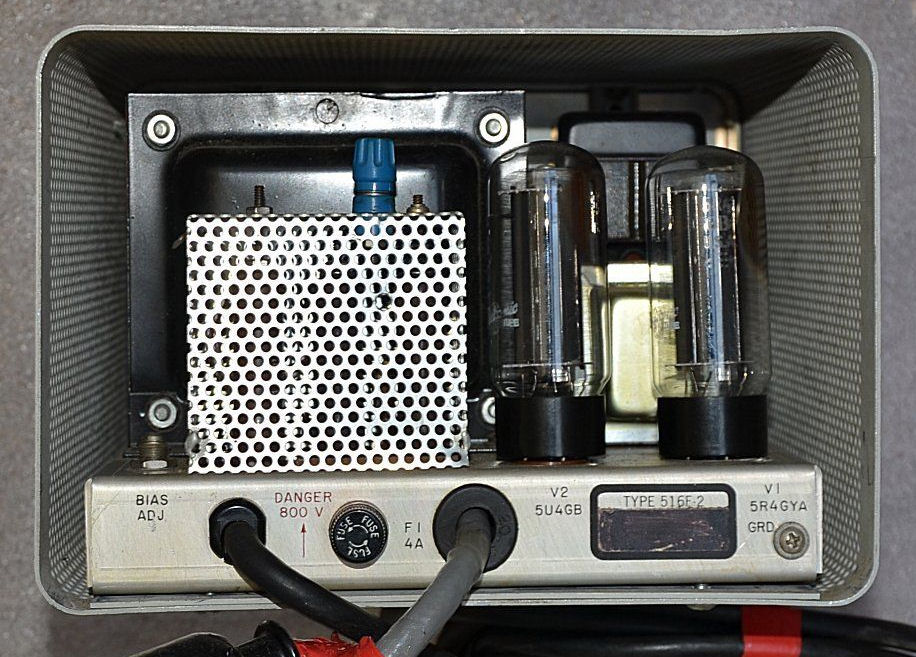

Matching Power Supply Unit:

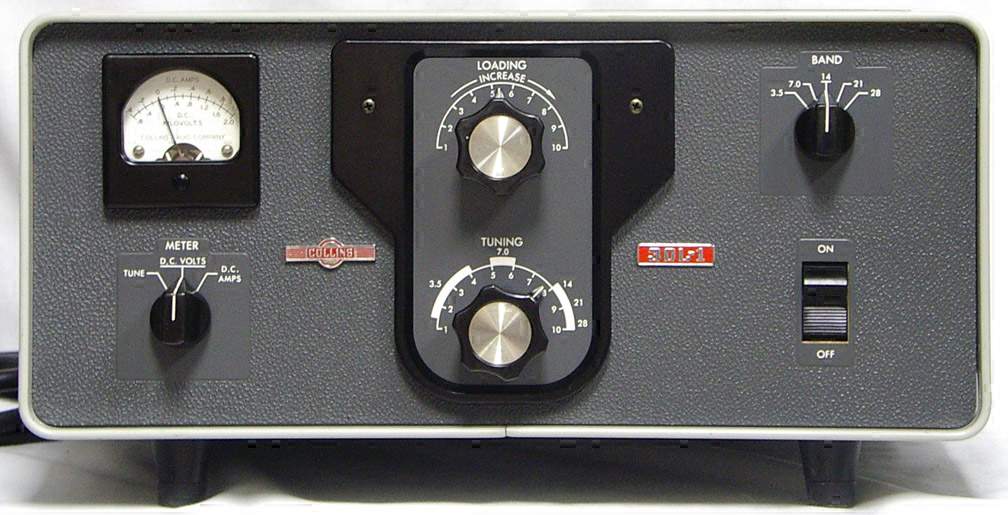

Matching Linear Amplifier:
