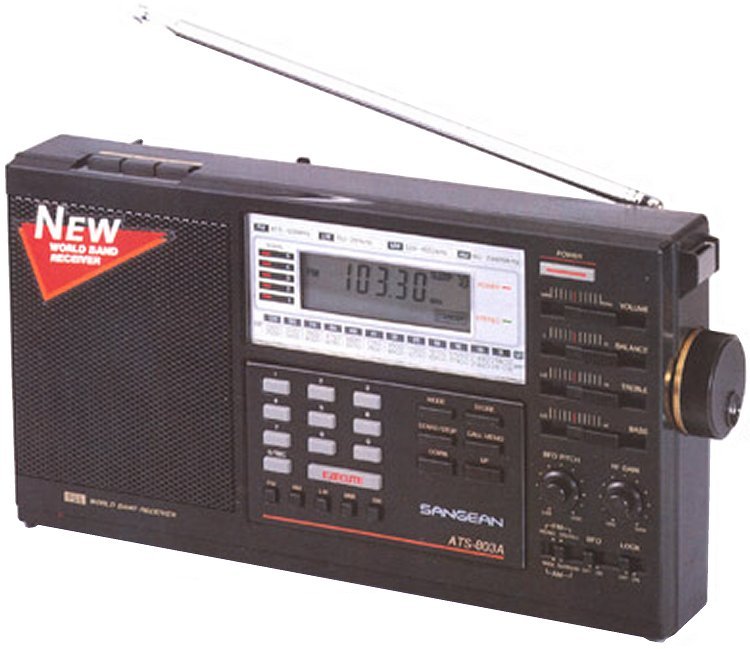

Sangean ATS-803A
| Type: |
HF/VHF receiver |
| Frequency Range: |
0.150-30 / 87.5-108 MHz
9 / 10 KHz step switch on MW |
| Modes: |
AM/SSB/CW/WFM Stereo |
| Memories: |
15 |
| Voltage: |
9 VDC (6*R20/D + 2*R6/AA) |
| Current Drain: |
? mA |
| Impedance: |
? ohms |
| Dimensions (W*H*D): |
293*160*60 mm |
| Weight: |
1.75 Kg |
| Manufactured: |
19xx-19xx (Discontinued) |
| Other: |
Wide/narrow selectivity. Clock. RF gain |
| Related Documents: |
Operating Manual (1.87 MB)
Service Manual (10.4 MB) |
|
