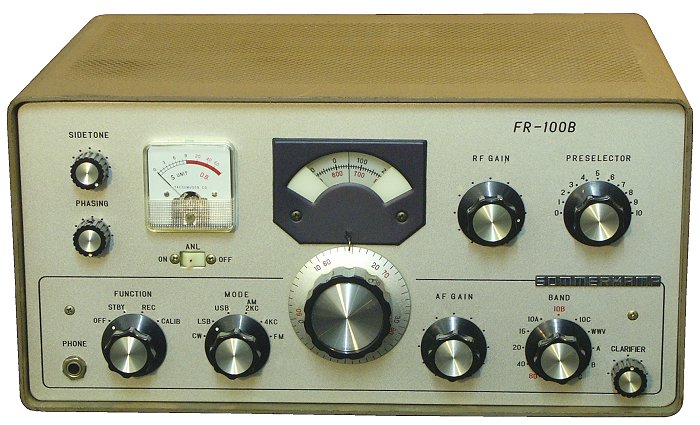

Sommerkamp FR-100B
| Type: |
HF Receiver |
| Frequency Range: |
10-80 m |
| Mode: |
AM/SSB/CW (FM option) |
| Sensitivity: |
0.5 uV (10 dB S/N) |
| Selectivity: |
SSB: 2.1 KHz (-6 dB) |
| Image rejection: |
>50 dB |
| Voltage: |
Mains |
| Current Drain: |
? |
| Aerial Input: |
50-70 ohms, SO-239 |
| Dimensions (W*H*D): |
380*180*330 mm |
| Weight: |
12 Kg |
| Manufactured: |
1965-196x |
| Other: |
New price 1965 in West Germany: 995.- DM |
| Related Documents: |
User Manual (4.21 MB) |
|
