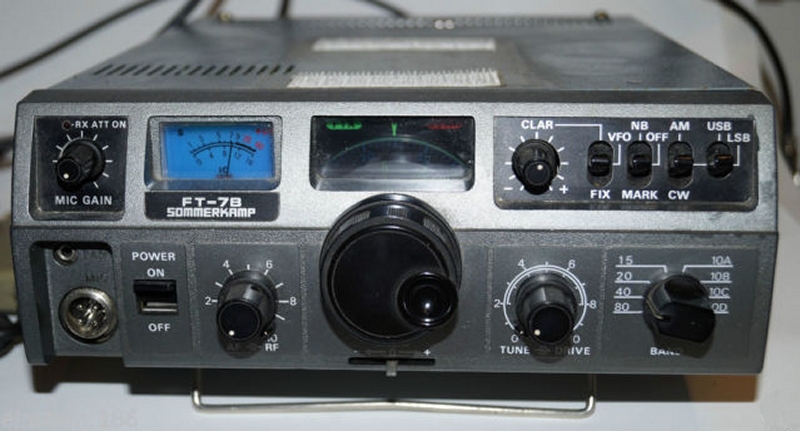

Sommerkamp FT-7B
| Type: |
Amateur HF Transmitter |
| Frequency Range: |
10-80 m |
| Mode: |
AM/SSB/CW |
| RF Power output: |
AM: 12 W
SSB/CW: 50 W |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
13.8 VDC |
| Current Drain: |
RX: 600 mA
TX: Max 10 A |
| Aerial Input: |
50 ohms, SO-239 |
| Dimensions (W*H*D): |
230 x 80 x 320 mm |
| Weight: |
5.5 Kg |
| Manufactured: |
Japan: 19xx-19xx |
| Other: |
|
| Related Documents: |
|
|
