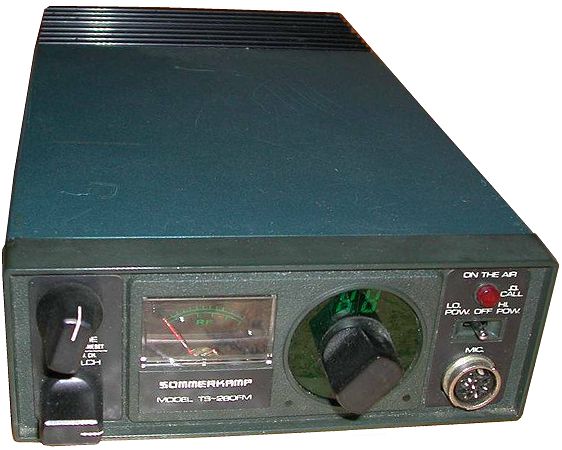

Sommerkamp TS-280FM

Type: Amateur VHF Transceiver
Frequency Range: 144-146 MHz (80 channels), 25 KHz steps
Mode: FM
RF Power output: Hi: 50 W (100% duty cycle!)
Lo: 2 W
Sensitivity: 0.4 uV (12 dB SINAD)
Selectivity: 15 KHz (-3 dB), 25 KHz (-70 dB)
Image rejection: Better than 70 dB
Voltage: 10-16 VDC
Current Drain: RX: 300 mA
TX: Max 8 A
Aerial Input: 50 ohms, SO-239
Dimensions (W*H*D): 156*58*290 mm
Weight: 2.3 Kg
Manufactured: Japan, 197x-197x
Other:
Related Documents:
