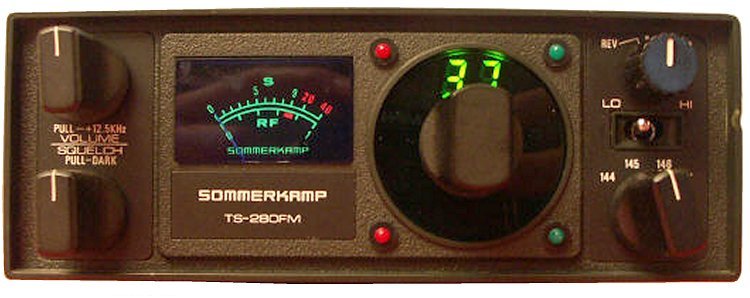

Sommerkamp TS-280FM (US version)

Type: Amateur VHF Transceiver
Frequency Range: 144-147.9875 MHz (320 channels), 12.5 KHz steps
Mode: FM (5 KHz deviation)
RF Power output: Hi: 45 W (100% duty cycle!)
Lo: 5 W
Sensitivity: 1 uV (25 dB SINAD)
Selectivity: 7.5 KHz (-6 dB)
Image rejection: Better than 60 dB
Voltage: 10-16 VDC
Current Drain: RX: 300 mA
TX: Max 8 A
Aerial Input: 50 ohms, SO-239
Dimensions (W*H*D): 156*58*290 mm
Weight: 2.3 Kg
Manufactured: Japan, 197x-1980
Other:
Related Documents:
