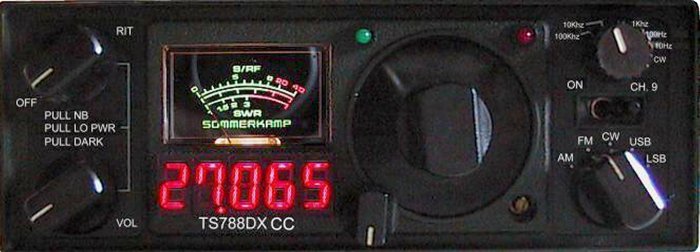

Sommerkamp TS-788DXCC

Type: Amateur HF Transmitter
Frequency Range: 26-30 MHz (100/10/1 KHz/100 Hz steps)
Mode: AM/FM/SSB/CW
RF Power output: Hi: 100 W (25 W AM)
Lo: 20 W (5 W AM)
Sensitivity: N/A
Selectivity: N/A
Image rejection: N/A
Voltage: 11-16 VDC
Current Drain: RX: Max ? A
TX: Max 20 A
Aerial Input: 50 ohms, SO-239
Dimensions (W*H*D): 156*61*290 mm
Weight: ? Kg
Manufactured: Japan, 197x-197x
Other: Also known as "The coffeewarmer"
Microphone is switchable for use as a speaker-mike. This
is an interesting feature I've never seen before in a mobile
radio. Very useful in a noisy vehicle. This version also features
-100 KHz repeater offset for 10 m repeater use.
