| Type: |

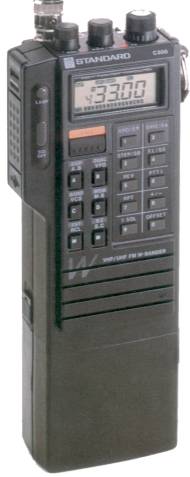

Amateur Transceiver |
| Frequency Range: |
144-148 / 430-440 MHz (5/10/12.5/20/25/50 KHz steps) |
| Modes: |
FM |
| RF Power output: |
Hi: 3-5 W (depending on voltage)
Lo: 400 mW |
| Voltage: |
5.5-16 VDC |
| Current Drain: |
RX: 35-150 mA
TX: Max 1.3 A |
| Aerial Input: |
50 ohms, BNC |
| Dimensions (W*H*D): |
60*173*34 mm |
| Weight: |
490 gr (including batteries and antenna) |
| Manufactured: |
19xx-19xx |
| Other: |
20 memories. Full duplex possibility. CTCSS and DTMF option |
| Related Documents: |
User Manual (7.87 MB) |
