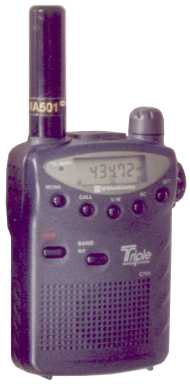

Standard C-701
| Type: |
Amateur Transceiver |
| Frequency Range: |
TX: 144-146 / 430-440 / 1240-1300 MHz (Asia)
RX: 100-200 / 300-520 / 700-1000 / 1200-1320 MHz |
| Modes: |
TX: FM
RX: AM/FM |
| RF Power output: |
280/280/100 mW |
| Voltage: |
2.2-3.5 VDC |
| Current Drain: |
RX: 11-40 mA
TX: Max 280 mA |
| Aerial Input: |
50 ohms, SMA |
| Dimensions (W*H*D): |
63*95*29 mm |
| Weight: |
160 gr |
| Manufactured: |
Japan, 1996-199x |
| Other: |
|
| Related Documents: |
|
|
