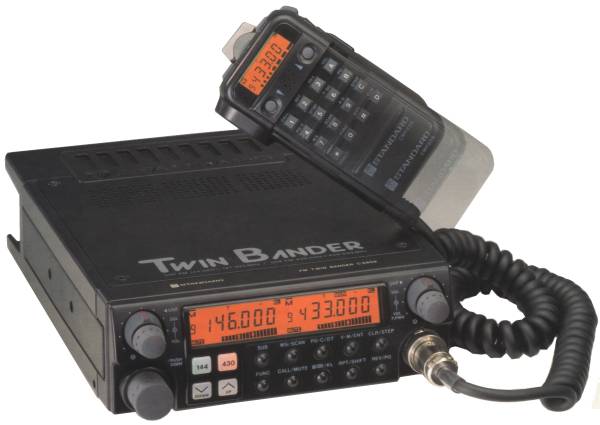

Standard C-5608D
| Type: |
Amateur Transceiver |
| Frequency Range: |
144-148 / 430-440 MHz (5/10/12.5/20/25/50 KHz/1 MHz steps)
144-148 / 438-450 MHz (US version) |
| Modes: |
FM |
| RF Power output: |
Hi: 50/50 W
Mid: 10/10 W
Lo: 3/3 W |
| Voltage: |
13.8 VDC |
| Current Drain: |
RX: 0.9-1.6 A, TX: Max 12 A |
| Aerial Input: |
50 ohms |
| Dimensions (W*H*D): |
150*50*210 mm |
| Weight: |
2 Kg |
| Manufactured: |
1991-199x |
| Other: |
40 memories. Detachable head. CTCSS & DTMF option
RX: 115-180 / 328-500 MHz. Twin RX |
| Related Documents: |
User Manual (6.49 MB) |
|
