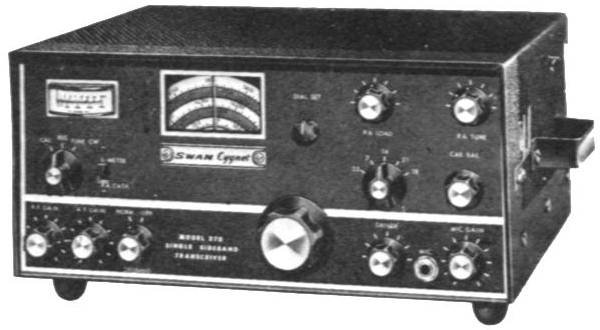

Swan 270 Cygnet
| Type: |
Amateur HF Transceiver |
| Frequency Range: |
10-80 m
3.5-4 / 7-7.3 / 14-14.35 / 21-21.45 / 28-29.7 MHz |
| Mode: |
SSB/CW |
| RF Power output: |
SSB: 260 W (PEP input), CW: 180 W (input) |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
Mains |
| Current Drain: |
? A |
| Aerial Input: |
50-75 ohms, SO-239 |
| Dimensions (W*H*D): |
330*140*280 mm |
| Weight: |
11 Kg |
| Manufactured: |
19xx-19xx |
| Other: |
1 x 6LQ6 final. 12 VDC option |
| Related Documents: |
|
|
