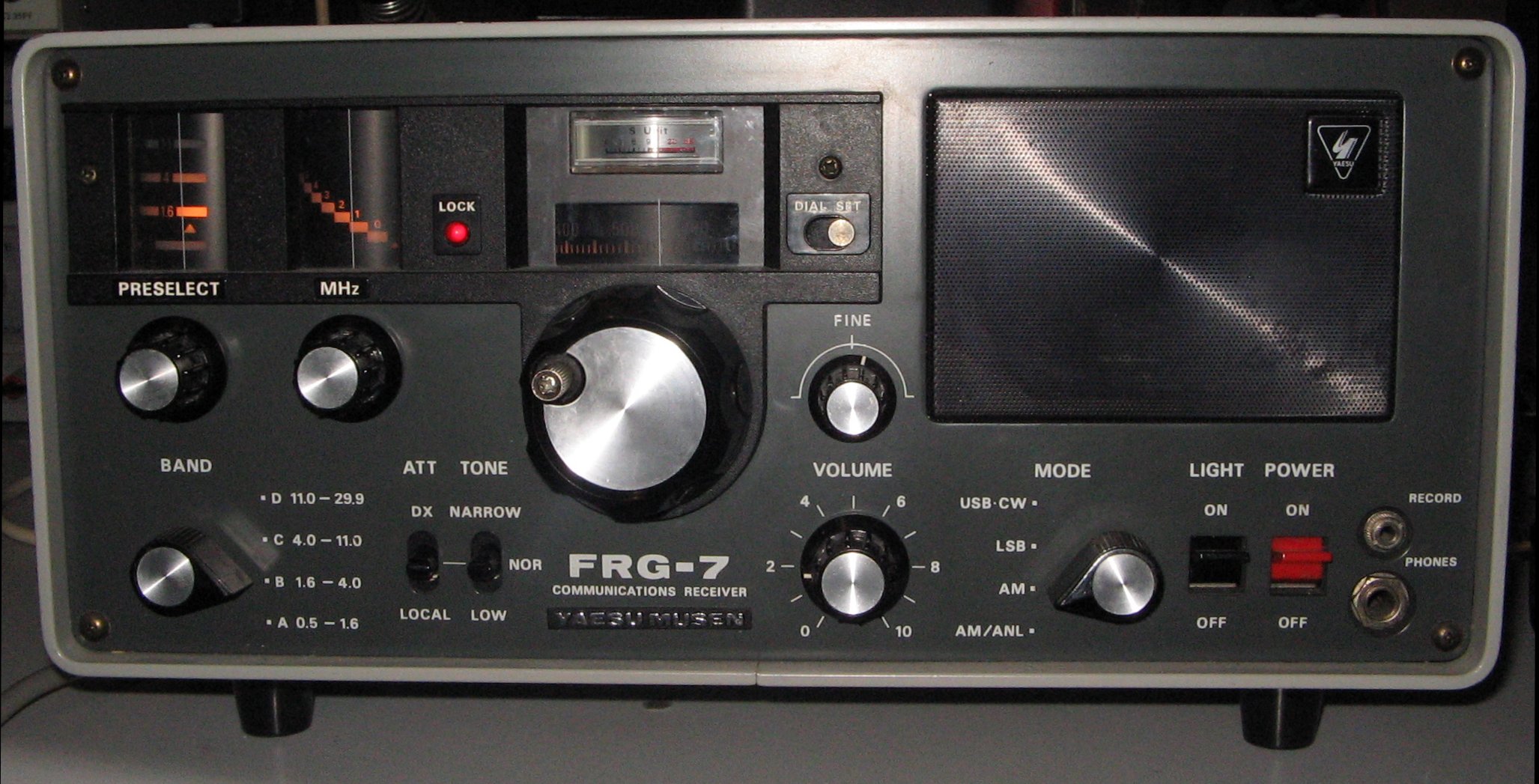

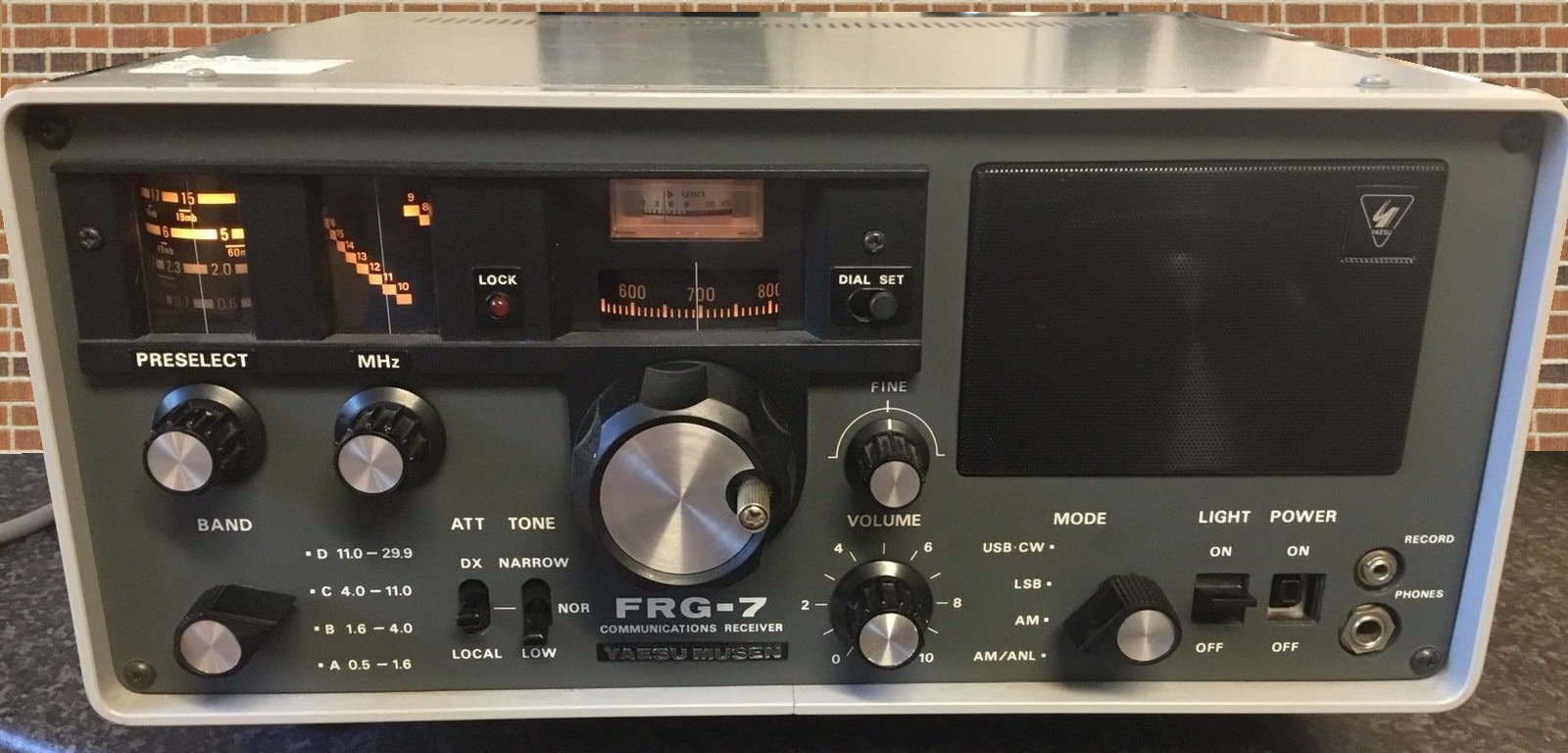

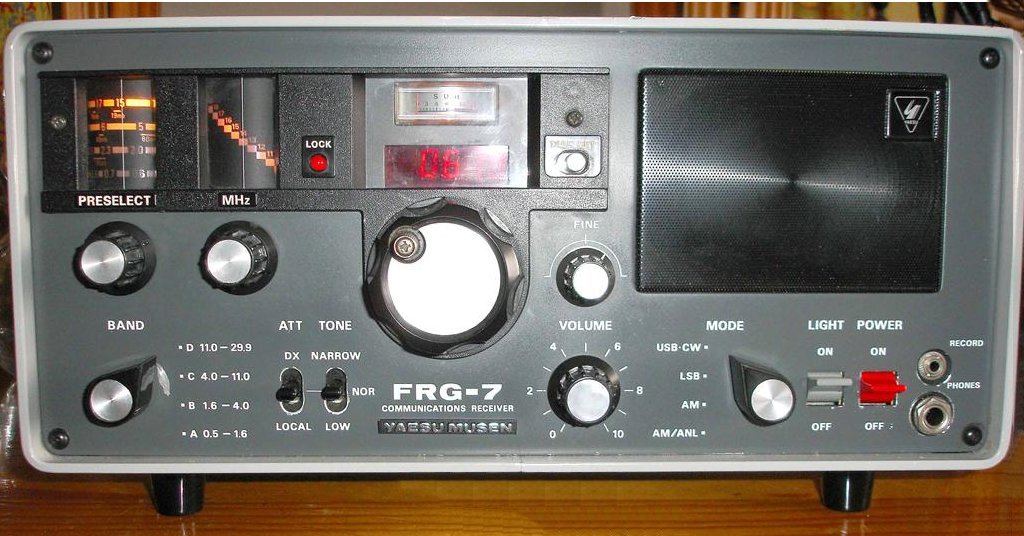

Yaesu FRG-7

Type: HF Receiver
Frequency Range: 0.5-30 MHz in four bands
Modes: SSB/CW/AM
RF Power output: N/A
Sensitivity: N/A
Selectivity: N/A
Image rejection: N/A
Voltage: 13.8 VDC or Mains + battery option
Current Drain: Max ? mA

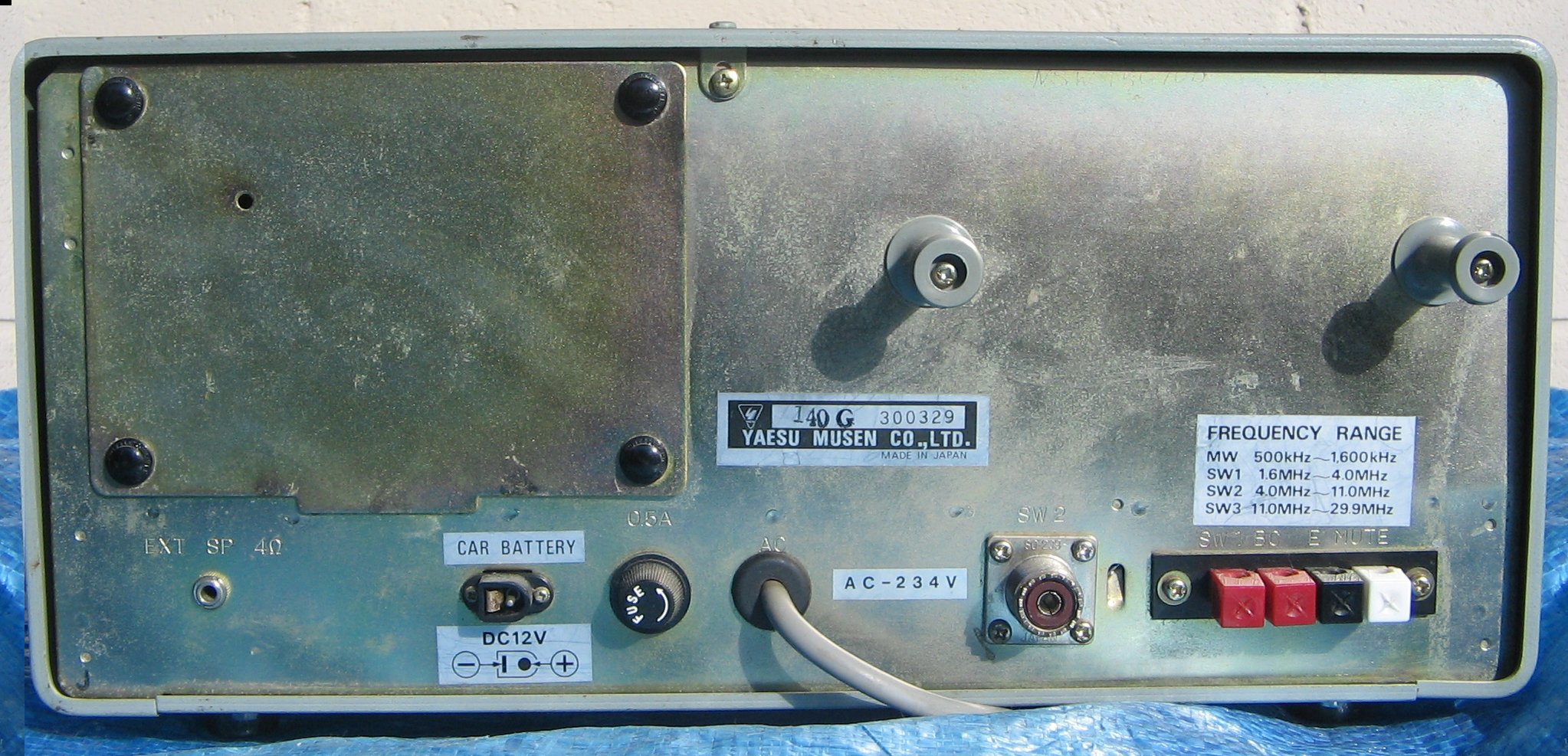

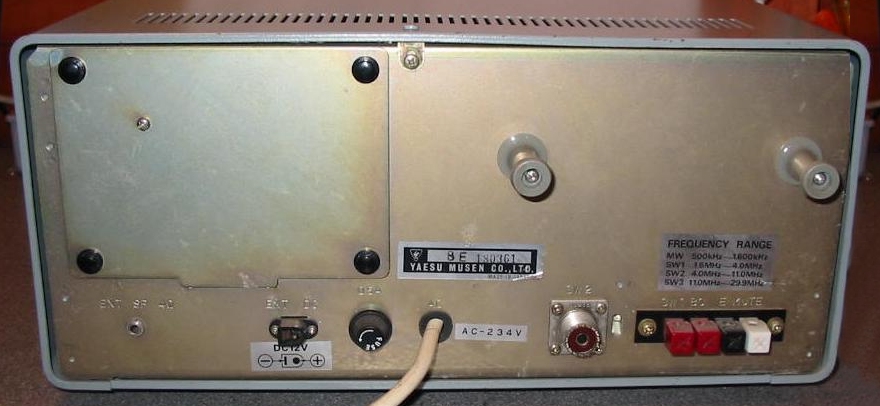

Aerial Input: <1.6 MHz=random wire, >1.6 MHz=50 ohms, SO-239
Dimensions (W*H*D): 340*150*284 mm
Weight: ? Kg
Manufactured: Japan, 1976-1980
Other: Early versions did not feature the fine tuning knob.
Related Documents: User Manual (3.73 MB)
Schematic (3.73 MB)
