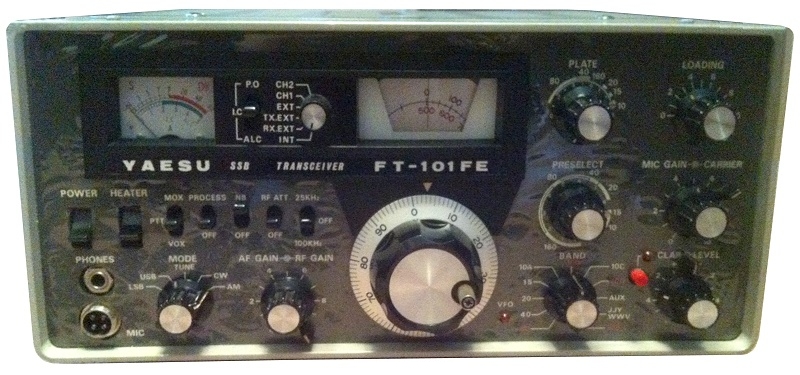

Yaesu FT-101FE
| Type: |
Amateur HF Transceiver |
| Frequency Range: |
TX/RX: 10-160 m
RX (Only): 10-10.5 / 26.9-27.5 MHz |
| Modes: |
AM/SSB/CW |
| RF Power output: |
AM Max: 80 W (input)
SSB: 260 W(PEP input)
CW: 180 W (input) |
| Sensitivity: |
0.3 uV (10 dB S/N) |
| Selectivity: |
AM/SSB/CW: 2.4 KHz (-6 dB), 4 KHz (-60 dB)
CW with optional filter: 600 Hz (-6 dB), 1.2 KHz (-60 dB) |
| Image rejection: |
N/A |
| Voltage: |
12 VDC or Mains |
| Current Drain: |
RX: 600 mA @ 12 VDC
TX: Max 21 A @ 12 VDC |
| Aerial Input: |
50-75 ohms, SO-239 |
| Dimensions (W*H*D): |
334 x 148 x 284 mm |
| Weight: |
13.6 Kg |
| Manufactured: |
Japan, 197x-19xx (Discontinued) |
| Other: |
|
| Related Documents: |
|
|
