| Type: |
Amateur HF Transceiver |
| Frequency Range: |
10-160 m + WARC (Early versions did NOT feature the WARC bands) |
| Modes: |
AM/SSB/CW |
| RF Power output: |
AM: 30 W (DC)
SSB/CW: 100 W |
| Sensitivity: |
AM: 0.5 uV (10 dB S/N)
SSB/CW: 0.25 uV (10 dB S/N) |
| Selectivity: |
2.4 KHz (-6 dB), 4 KHz (-60 dB) |
| Image rejection: |
>60 dB (15-160 m)
>50 dB (10 m) |
| Voltage: |
Mains (13.8 VDC option) |
| Current Drain: |
RX: 5.5 A (1.1 A heater off)
TX: Max 21 A |
| Aerial Input: |
50-75 ohms, SO-239 |
| Dimensions (W*H*D): |
345*157*326 mm |
| Weight: |
15 Kg |
| Manufactured: |
1979-19xx |
| Other: |
External VFO option (FV-101Z) |
| Related Documents: |
User Manual (54.4 MB) |

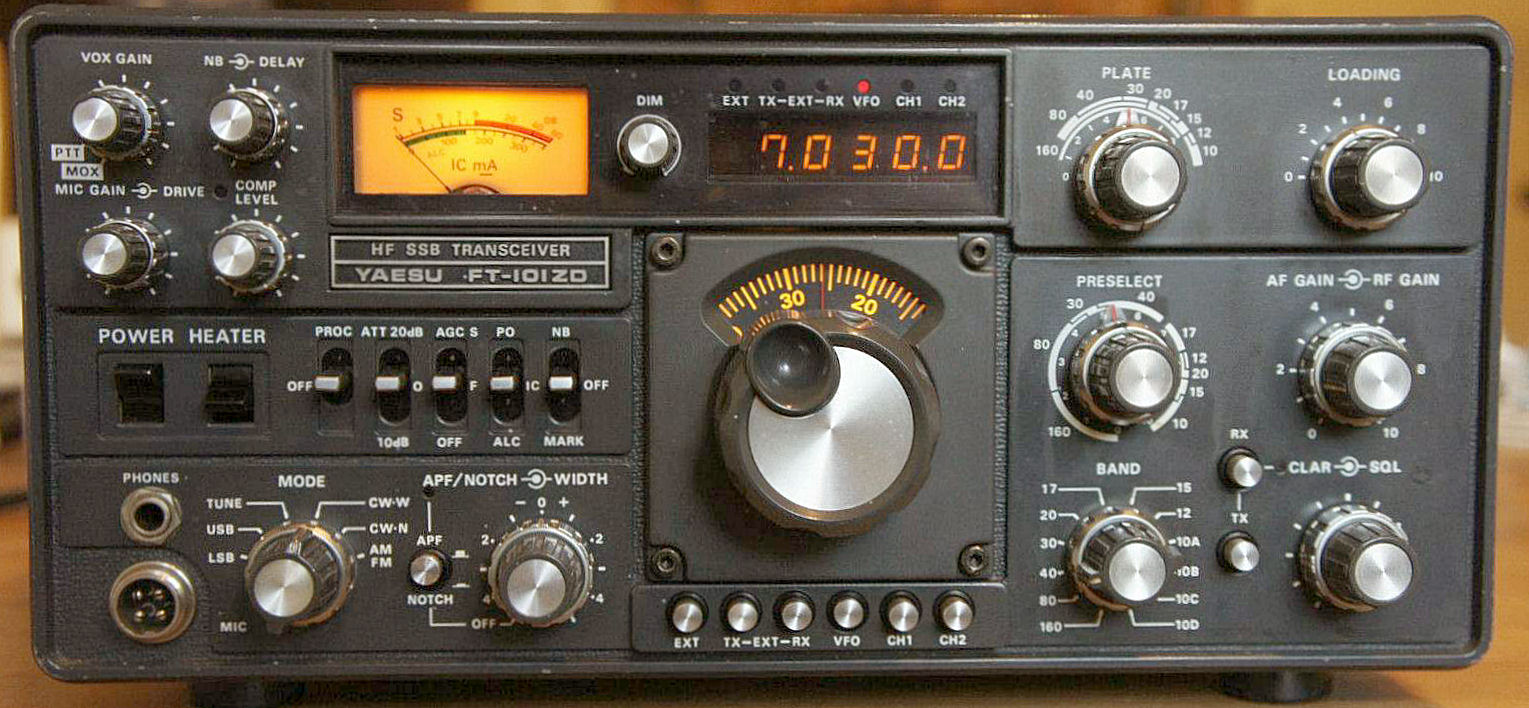

.jpg "Yaesu FT-101ZD")
