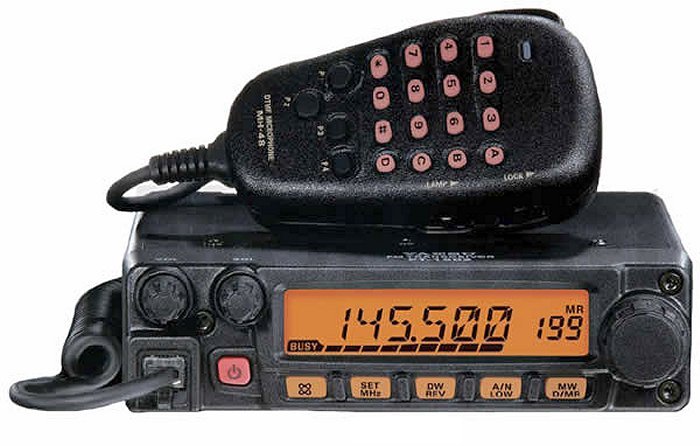

Yaesu FT-1802E
| Type: |
Amateur VHF Transceiver |
| Frequency Range: |
TX: 144-146 MHz
RX: 136-174 MHz
(5 / 10 / 12.5 / 15 / 20 / 25 / 50 / 100 KHz steps) |
| Modes: |
FM/NFM |
| RF Power output: |
Hi: 50 W
Mid: 25 W
Lo2: 10 W
Lo: 5 W |
| Sensitivity: |
<0.2 uV (12 dB SINAD) |
| Selectivity: |
FM: 12 KHz (-6 dB), 28 KHz (-60 dB)
NFM: 9 KHz (-6 dB), 22 KHz (-60 dB) |
| Image rejection: |
>70 dB |
| Voltage: |
13.8 VDC |
| Current Drain: |
RX: 300-700 mA
TX: 4-10 A |
| Aerial Input: |
50 ohms |
| Dimensions (W*H*D): |
140*40*146 mm |
| Weight: |
1.2 Kg |
| Manufactured: |
2006-200x |
| Other: |
221 memories with Alpha-tags. ARTS, DTMF, CTCSS, DCS
WIRES II. CW trainer. Password protection |
| Related Documents: |
|
|
