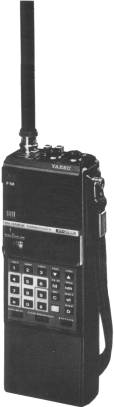

| Type: | Amateur VHF Transceiver |
| Frequency Range: | 144-146 MHz (12.5 KHz steps) |
| Modes: | FM |
| RF Power output: | Hi 3.5 W Lo 350 mW |
| Sensitivity: | N/A |
| Selectivity: | N/A |
| Image rejection: | N/A |
| Voltage: | 10.8 VDC |
| Current Drain: | RX: Max 150 mA TX: Max 650 mA |
| Aerial Input: | 50 ohms |
| Dimensions (W*H*D): | 65*168*34 mm |
| Weight: | ? gr |
| Manufactured: | 1985-19xx |
| Other: | 10 memories |
| Related Documents: | Technical Supplement (11.5 MB) |
