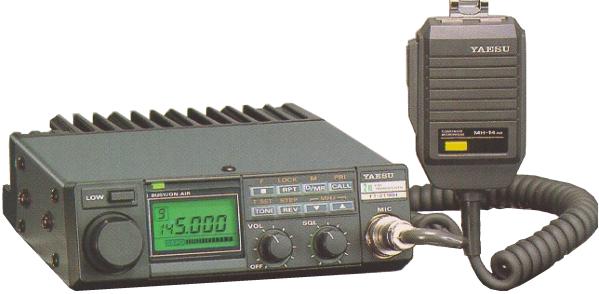

Yaesu FT-211RH
| Type: |
Amateur VHF Transceiver |
| Frequency Range: |
144-146 MHz (12.5/25 KHz steps) |
| Modes: |
FM |
| RF Power output: |
Hi: 45 W
Lo: 5 W |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
13.8 VDC |
| Current Drain: |
RX: 450-700 mA
TX: Max 9 A |
| Aerial Input: |
50 ohms, SO-239 |
| Dimensions (W*H*D): |
160*50*175 mm |
| Weight: |
1.5 Kg |
| Manufactured: |
1987-19xx |
| Other: |
|
| Related Documents: |
|
|
