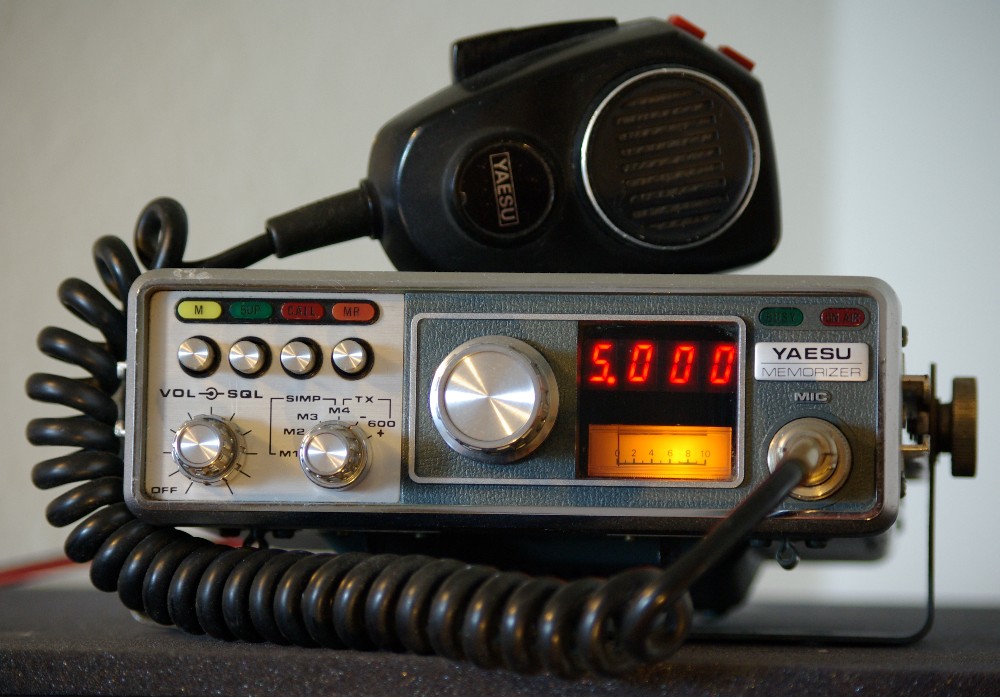

Yaesu FT-227RA
| Type: |
Amateur VHF Transceiver |
| Frequency Range: |
144-148 MHz (5 KHz steps) |
| Modes: |
FM |
| RF Power output: |
Hi: 20 W
Lo: 2 W |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
13.8 VDC |
| Current Drain: |
RX: Max 0.5 A
TX: Max 2.5 A |
| Aerial Input: |
50 ohms, SO-239 |
| Dimensions (W*H*D): |
180*60*220 mm |
| Weight: |
2.7 Kg |
| Manufactured: |
19xx-19xx |
| Other: |
|
| Related Documents: |
User Manual (6.66 MB) |
|
