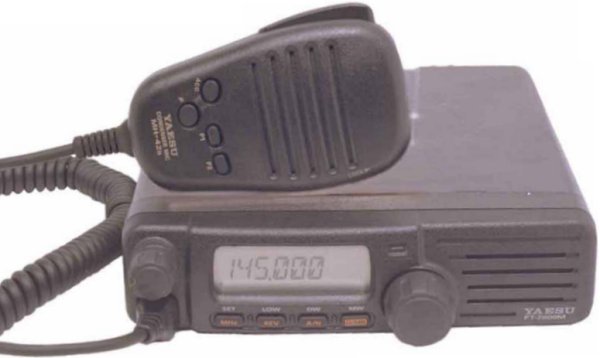

Yaesu FT-2600M
| Type: |
Amateur VHF Transceiver |
| Frequency Range: |
TX: 144-146 MHz (Europe)
TX: 144-148 MHz (USA)
RX: 134-174 MHz |
| Modes: |
FM |
| RF Power output: |
Hi: 60 W
Mid1: 25 W
Mid2: 10 W
Lo: 5 W |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
13.8 VDC |
| Current Drain: |
RX: 0.4-1 A
TX: 3-10 A |
| Aerial Input: |
50 ohms, SO-239 |
| Dimensions (W*H*D): |
160*40*160 mm |
| Weight: |
1.3 Kg |
| Manufactured: |
1999-200x |
| Other: |
170 + 5 memories. ARTS, CTCSS & DCS.
9K6 packet ready. PC-programmable. |
| Related Documents: |
|
|
